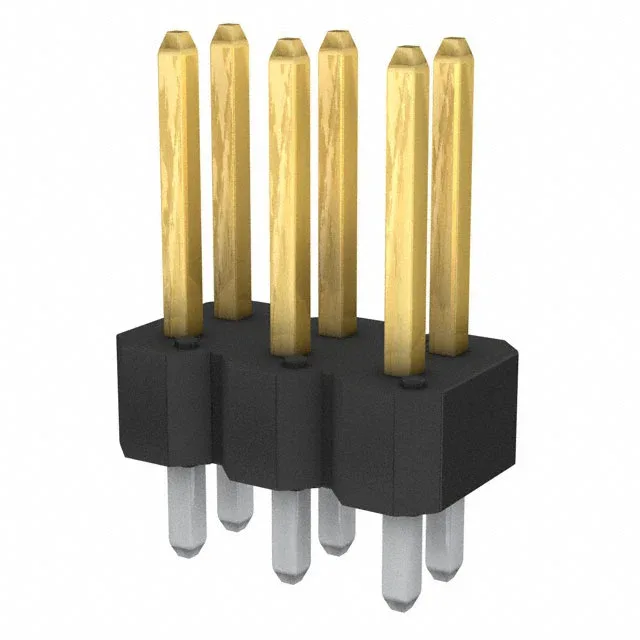

Amphenol ICC (FCI) BergStik® header, 77313-127-06LF, 6 positions, 0.100" (2.54 mm) pitch, dual-row, unshrouded, through-hole, 3 A per contact, 30 µ" gold mating finish, UL94 V-0 black thermoplastic, RoHS compliant.
| Parameter | Value |
|---|---|
| Series | BERGSTIK® |
| Type | Male Pin |
| Mounting | Through Hole |
| Connector type | Header, Breakaway |
| Fastening type | Push-Pull |
| Current rating | 3A per Contact |
| Operating temperature | -65°C~130°C |
| Contact material | Phosphor Bronze |
| Insulation color | Black |
| Insulation height | 0.100\" (2.54mm) |
| Insulation material | Thermoplastic |
| Material flammability rating | UL94 V-0 |
| Parameter | Value |
|---|---|
| Style | Board to Board or Cable |
| Package | Bulk |
| Shrouding | Unshrouded |
| Termination | Solder |
| Contact shape | Square |
| Rows | 2 |
| Pitch | 0.100\" (2.54mm) |
| Positions | 6 |
| Row spacing - mating | 0.100\" (2.54mm) |
| Contact finish - post | Tin |
| Contact length - post | 0.105\" (2.67mm) |
| Overall contact length | 0.465\" (11.81mm) |
| Contact finish - mating | Gold or Gold, GXT™ |
| Contact length - mating | 0.260\" (6.60mm) |
| Contact finish thickness - post | 78.7µin (2.00µm) |
| Contact finish thickness - mating | 30.0µin (0.76µm) |
The tin-plated solder tails (78.7 µ" / 2.00 µm) are standard for reliable wave-solder wetting. Phosphor bronze contact material provides good spring retention over temperature.
If your BOM needs more I/O on the same footprint, the 10-position version is a drop-in replacement for the extra circuits.
The 77313-127-06LF is sourced through independent distribution.
