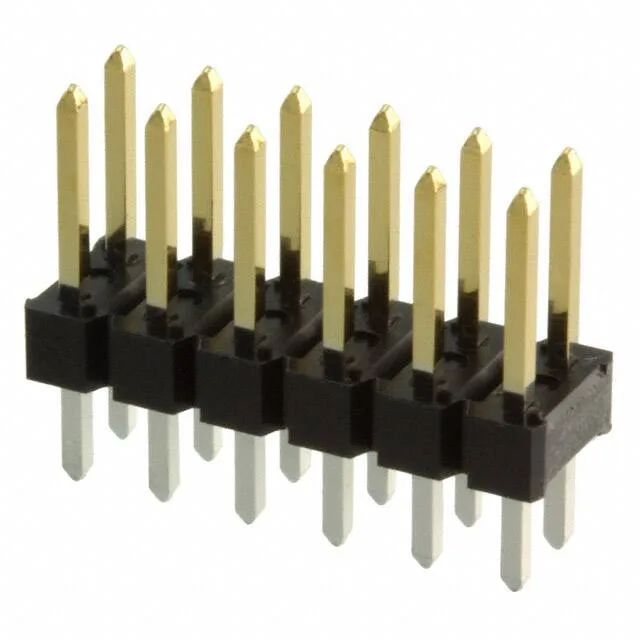

77313-127-12LF — Amphenol product photo
Amphenol

77313-127-12LF BERGSTIK® Header, 12 Pos, 0.100" Pitch

MPN77313-127-12LF
Active

Amphenol ICC (FCI) BERGSTIK® unshrouded breakaway header, 12 positions, 2 rows, 0.100" pitch, 0.100" row spacing, through-hole solder termination, 3 A per contact, gold or GXT™ mating finish, UL94 V-0 black thermoplastic.

$0.6900Ref. price · indicative, final on quote
77313-127-12LF datasheet
StockContact for availability
Lead timeIn Stock wk
MOQ1 pcs
  • New & original stockTraceable channels only — no mixed lots, no re-taped reels.
  • Factory packaging where availableSealed reels, trays and bags; cut quantities always stated on the quote.
  • Photo-verified countsEvery line counted and photographed before the box closes.
  • PayPal buyer protectionPay by T/T, PayPal or Payoneer — card payments covered end to end.
How we verify every order →

Specifications

77313-127-12LF Technical Specifications
ParameterValue
SeriesBERGSTIK®
GenderMale Pin
Mounting typeThrough Hole
Connector typeHeader, Breakaway
Fastening typePush-Pull
Current rating3A per Contact
Operating temperature-65°C~130°C
Contact materialPhosphor Bronze
Insulation colorBlack
Insulation height0.100\" (2.54mm)
Insulation materialThermoplastic
Material flammability ratingUL94 V-0
StyleBoard to Board or Cable
PackageBulk
ShroudingUnshrouded
TerminationSolder
Contact shapeSquare
Rows2
Pitch0.100\" (2.54mm)
Positions12
Row spacing - mating0.100\" (2.54mm)
Contact finish - postTin
Contact length - post0.105\" (2.67mm)
Overall contact length0.465\" (11.81mm)
Contact finish - matingGold or Gold, GXT™
Contact length - mating0.260\" (6.60mm)
Contact finish thickness - post78.7µin (2.00µm)
Contact finish thickness - mating30.0µin (0.76µm)

Product details

Board Fit and Routing Dimensions

Current Rating and Contact Life

Phosphor bronze contact material provides good spring retention and corrosion resistance in industrial environments.

RoHS compliant. No official successor or cross-reference from the original manufacturer — the 77313 base number covers multiple position counts and pin lengths, so the 12-position variant is the one to match.

Another 12-position variant (77313-101-12LF) uses a shorter 0.425" overall contact length (10.80 mm) versus the 0.465" (11.81 mm) of this part. The mating pin length differs, so the stack height with the receptacle changes — verify the mating depth before substituting.

Frequently asked questions

Where can I buy 77313-127-12LF and how is it quoted?

It is quoted to order against your BOM quantity — no stock-holding claim is made. Submit a request with your target quantity and delivery window.

What is the pitch and number of rows for 77313-127-12LF?

It is an unshrouded header (no plastic shroud around the pins).
