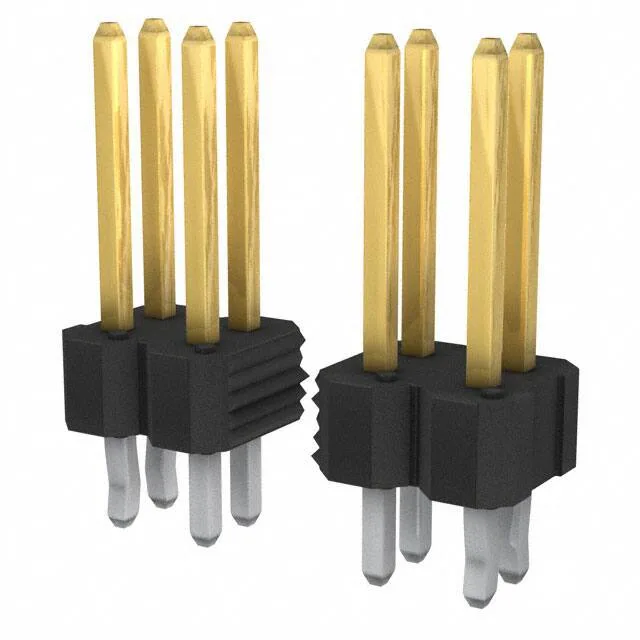

Amphenol ICC (FCI) BERGSTIK® series, 77313-146R20LF, unshrouded breakaway header, 20 circuits, 0.100" (2.54mm) pitch, dual row, through hole, kinked pin solder termination, 30.0µin gold or GXT™ on mating contact, 3A per contact, UL94 V-0 thermoplastic housing.
| Parameter | Value |
|---|---|
| Series | BERGSTIK® |
| Type | Male Pin |
| Mounting | Through Hole |
| Connector type | Header, Breakaway |
| Fastening type | Push-Pull |
| Current rating | 3A per Contact |
| Operating temperature | -65°C~130°C |
| Contact material | Phosphor Bronze |
| Insulation color | Black |
| Insulation height | 0.100\" (2.54mm) |
| Insulation material | Thermoplastic |
| Material flammability rating | UL94 V-0 |
| Parameter | Value |
|---|---|
| Style | Board to Board or Cable |
| Package | Bag |
| Shrouding | Unshrouded |
| Termination | Kinked Pin, Solder |
| Contact shape | Square |
| Rows | 2 |
| Pitch | 0.100\" (2.54mm) |
| Positions | 20 |
| Row spacing - mating | 0.100\" (2.54mm) |
| Contact finish - post | Tin |
| Contact length - post | 0.117\" (2.97mm) |
| Overall contact length | 0.535\" (13.59mm) |
| Contact finish - mating | Gold or Gold, GXT™ |
| Contact length - mating | 0.318\" (8.08mm) |
| Contact finish thickness - post | 78.7µin (2.00µm) |
| Contact finish thickness - mating | 30.0µin (0.76µm) |
The 77313-146R20LF: The dual-row layout with 0.100" row spacing gives you 20 circuits in a compact 0.200" x 1.000" footprint, and the breakaway design means you can snap the strip to a shorter length if your BOM calls for fewer positions.
The mating interface accepts standard 0.025" square pin receptacles.
