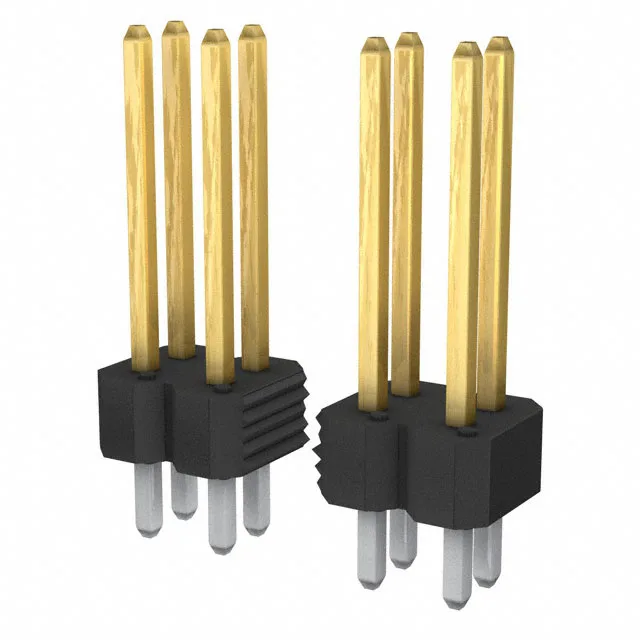

Amphenol ICC (FCI) BERGSTIK® header, breakaway, order code 77313-185-28LF, 28 positions, dual row, 0.100" (2.54mm) pitch, 3 A per contact, gold or GXT™ mating finish, through-hole, solder termination.
| Parameter | Value |
|---|---|
| Series | BERGSTIK® |
| Type | Male Pin |
| Mounting | Through Hole |
| Connector type | Header, Breakaway |
| Fastening type | Push-Pull |
| Current rating | 3A per Contact |
| Operating temperature | -65°C ~ 130°C |
| Contact material | Phosphor Bronze |
| Insulation color | Black |
| Insulation height | 0.100\" (2.54mm) |
| Insulation material | Thermoplastic |
| Material flammability rating | UL94 V-0 |
| Parameter | Value |
|---|---|
| Style | Board to Board or Cable |
| Package | Bag |
| Shrouding | Unshrouded |
| Termination | Solder |
| Contact shape | Square |
| Rows | 2 |
| Pitch | 0.100\" (2.54mm) |
| Positions | 28 |
| Row spacing - mating | 0.100\" (2.54mm) |
| Contact finish - post | Tin |
| Contact length - post | 0.114\" (2.90mm) |
| Overall contact length | 0.626\" (15.90mm) |
| Contact finish - mating | Gold or Gold, GXT™ |
| Contact length - mating | 0.413\" (10.50mm) |
| Contact finish thickness - post | 78.7µin (2.00µm) |
| Contact finish thickness - mating | 30.0µin (0.76µm) |
The 28 positions of the 77313-185-28LF sit between the 26-position and 30-position members of the same BERGSTIK series — all share the 0.100" pitch, 0.100" row spacing, and 0.100" insulation height, so the footprint and mating interface are consistent across the range.
RoHS and REACH compliance documentation is available from the manufacturer.
