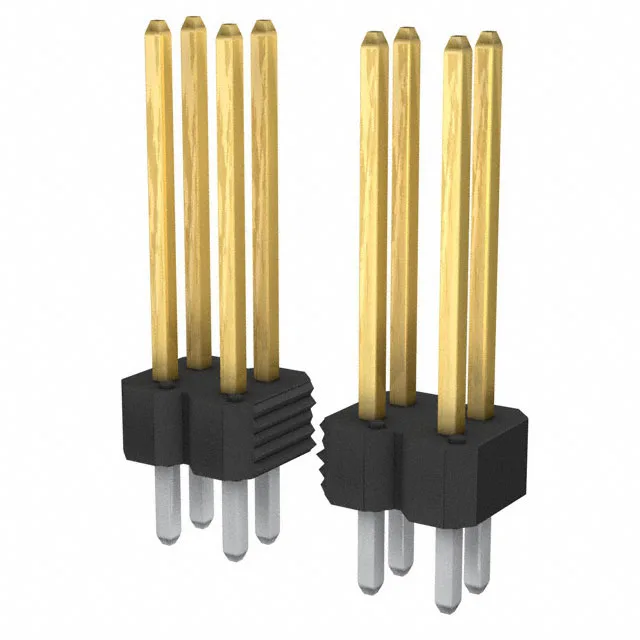

Amphenol BERGSTIK header, breakaway, order code 77313-1AA-30LF, 30 positions, dual row, 0.100" (2.54 mm) pitch, 3 A per contact, gold or GXT mating finish, through-hole, solder termination.
77313-1AA-30LF BERGSTIK Header, 30 Pos, 2.54mm
MPN77313-1AA-30LF
Active
Amphenol BERGSTIK header, breakaway, order code 77313-1AA-30LF, 30 positions, dual row, 0.100" (2.54 mm) pitch, 3 A per contact, gold or GXT mating finish, through-hole, solder termination.
$1.4759Ref. price · indicative, final on quote
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Aug 2026
Specifications
| Parameter | Value |
|---|---|
| Series | BERGSTIK® |
| Type | Male Pin |
| Mounting | Through Hole |
| Connector type | Header, Breakaway |
| Fastening type | Push-Pull |
| Current rating | 3A per Contact |
| Operating temperature | -65°C~130°C |
| Contact material | Phosphor Bronze |
| Insulation color | Black |
| Insulation height | 0.100\" (2.54mm) |
| Insulation material | Thermoplastic |
| Material flammability rating | UL94 V-0 |
All specifications
| Parameter | Value |
|---|---|
| Style | Board to Board or Cable |
| Package | Bag |
| Shrouding | Unshrouded |
| Termination | Solder |
| Contact shape | Square |
| Rows | 2 |
| Pitch | 0.100\" (2.54mm) |
| Positions | 30 |
| Row spacing - mating | 0.100\" (2.54mm) |
| Contact finish - post | Tin |
| Contact length - post | 0.130\" (3.30mm) |
| Overall contact length | 0.697\" (17.70mm) |
| Contact finish - mating | Gold or Gold, GXT™ |
| Contact length - mating | 0.469\" (11.91mm) |
| Contact finish thickness - post | 78.7µin (2.00µm) |
| Contact finish thickness - mating | 30.0µin (0.76µm) |
Product details
Frequently asked questions
What compliance documentation is available for 77313-1AA-30LF?
The housing material is rated UL94 V-0. Contact the manufacturer or distributor for RoHS/REACH declarations specific to this date code.
