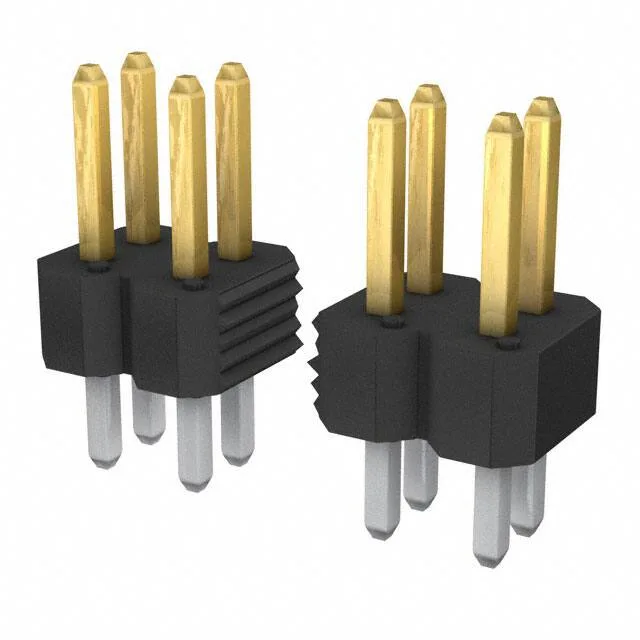

Amphenol ICC (FCI) BERGSTIK header, order code 77313-1AG-20LF, 20 positions, dual row, 0.100" (2.54 mm) pitch, 3 A per contact, gold or GXT™ mating contacts, through-hole, solder termination.
| Parameter | Value |
|---|---|
| Series | BERGSTIK® |
| Type | Male Pin |
| Mounting | Through Hole |
| Connector type | Header, Breakaway |
| Fastening type | Push-Pull |
| Current rating | 3A per Contact |
| Operating temperature | -65°C~130°C |
| Contact material | Phosphor Bronze |
| Insulation color | Black |
| Insulation height | 0.100\" (2.54mm) |
| Insulation material | Thermoplastic |
| Material flammability rating | UL94 V-0 |
| Parameter | Value |
|---|---|
| Style | Board to Board or Cable |
| Package | Bag |
| Shrouding | Unshrouded |
| Termination | Solder |
| Contact shape | Square |
| Rows | 2 |
| Pitch | 0.100\" (2.54mm) |
| Positions | 20 |
| Row spacing - mating | 0.100\" (2.54mm) |
| Contact finish - post | Tin |
| Contact length - post | 0.118\" (3.00mm) |
| Overall contact length | 0.407\" (10.33mm) |
| Contact finish - mating | Gold or Gold, GXT™ |
| Contact length - mating | 0.188\" (4.79mm) |
| Contact finish thickness - post | 78.7µin (2.00µm) |
| Contact finish thickness - mating | 30.0µin (0.76µm) |
The 77313-1AG-20LF is the 20-position member of Amphenol ICC (FCI)'s BERGSTIK unshrouded breakaway header line, configured for board-to-board or cable duty. Rated 3 A per contact with gold or GXT™ mating finish (30.0 µin / 0.76 µm) and through-hole solder termination, the square male pins mate with standard 0.100" pitch receptacles.
The 77313-1AG-20LF is available to order. Submit an RFQ with the target quantity for a current price and lead time.
