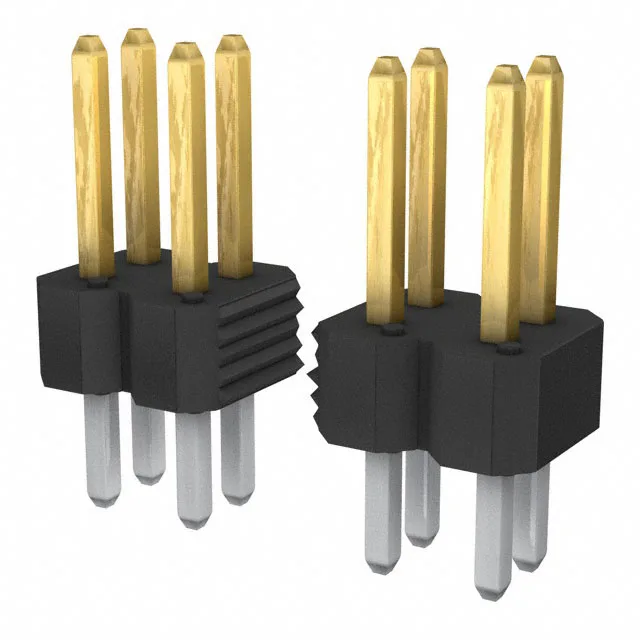

Amphenol ICC (FCI) BERGSTIK® header, breakaway, order code 77313-202-20LF, 20 positions, dual row, 0.100" (2.54mm) pitch, gold GXT™ mating contacts, through-hole, solder termination.
Amphenol ICC (FCI) 77313-202-20LF BERGSTIK® Header, 20 Pos
MPN77313-202-20LF
Obsolete
Amphenol ICC (FCI) BERGSTIK® header, breakaway, order code 77313-202-20LF, 20 positions, dual row, 0.100" (2.54mm) pitch, gold GXT™ mating contacts, through-hole, solder termination.
$1.2600Ref. price · indicative, final on quote
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent supplier — new & surplus connector stock· Listing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Series | BERGSTIK® |
| Type | Male Pin |
| Mounting | Through Hole |
| Connector type | Header, Breakaway |
| Fastening type | Push-Pull |
| Contact material | Phosphor Bronze |
| Insulation color | Black |
| Insulation height | 0.100\" (2.54mm) |
| Insulation material | Thermoplastic |
| Material flammability rating | UL94 V-0 |
| Style | Board to Board or Cable |
| Package | Bag |
All specifications
| Parameter | Value |
|---|---|
| Shrouding | Unshrouded |
| Termination | Solder |
| Contact shape | Square |
| Rows | 2 |
| Pitch | 0.100\" (2.54mm) |
| Positions | 20 |
| Row spacing - mating | 0.100\" (2.54mm) |
| Contact finish - post | Tin |
| Contact length - post | 0.135\" (3.43mm) |
| Overall contact length | 0.465\" (11.81mm) |
| Contact finish - mating | Gold, GXT™ |
| Contact length - mating | 0.230\" (5.84mm) |
| Contact finish thickness - post | 78.7µin (2.00µm) |
| Contact finish thickness - mating | 50.0µin (1.27µm) |
