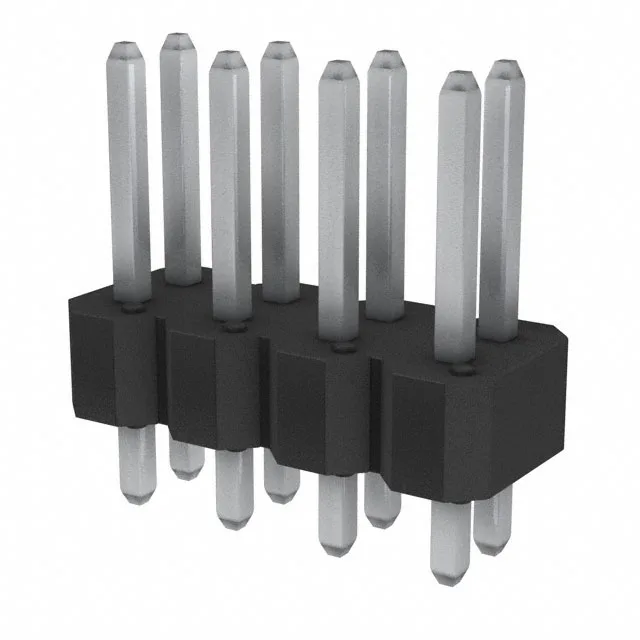

BergStik header, breakaway, order code 77313-401-08, 8 positions, dual row, 0.100" (2.54 mm) pitch, tin-lead mating contacts, through-hole, solder termination.
BergStik header, breakaway, order code 77313-401-08, 8 positions, dual row, 0.100" (2.54 mm) pitch, tin-lead mating contacts, through-hole, solder termination.
$0.4500Ref. price · indicative, final on quote
StockContact for availability
MOQ1 pcs
- New & original stockTraceable channels only — no mixed lots, no re-taped reels.
- Factory packaging where availableSealed reels, trays and bags; cut quantities always stated on the quote.
- Photo-verified countsEvery line counted and photographed before the box closes.
- PayPal buyer protectionPay by T/T, PayPal or Payoneer — card payments covered end to end.
Specifications
| Parameter | Value |
|---|---|
| Series | BERGSTIK® |
| Gender | Male Pin |
| Mounting type | Through Hole |
| Connector type | Header, Breakaway |
| Fastening type | Push-Pull |
| Contact material | Phosphor Bronze |
| Insulation color | Black |
| Insulation height | 0.100\" (2.54mm) |
| Insulation material | Thermoplastic |
| Material flammability rating | UL94 V-0 |
| Style | Board to Board or Cable |
| Package | Bulk |
| Shrouding | Unshrouded |
| Termination | Solder |
| Contact shape | Square |
| Rows | 2 |
| Pitch | 0.100\" (2.54mm) |
| Positions | 8 |
| Row spacing - mating | 0.100\" (2.54mm) |
| Contact finish - post | Tin-Lead |
| Contact length - post | 0.095\" (2.41mm) |
| Overall contact length | 0.425\" (10.80mm) |
| Contact finish - mating | Tin-Lead |
| Contact length - mating | 0.230\" (5.84mm) |
| Contact finish thickness - post | 150.0µin (3.81µm) |
| Contact finish thickness - mating | 150.0µin (3.81µm) |
