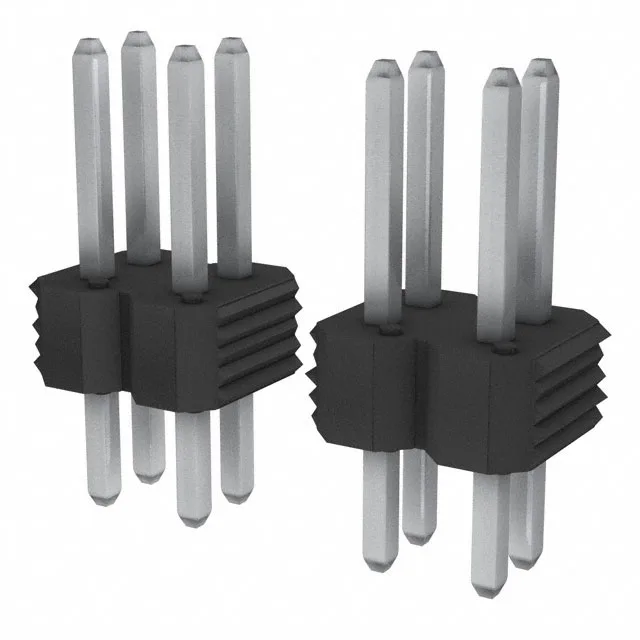

Amphenol ICC (FCI) BERGSTIK 77313-402-00LF, dual-row 0.100" (2.54mm) pitch breakaway header, 2 positions loaded, unshrouded male pins, through-hole solder termination, tin-plated phosphor bronze contacts rated 3A per circuit, black UL94 V-0 thermoplastic housing, -65°C to 130°C operating range, tape & reel packaging.
| Parameter | Value |
|---|---|
| Series | BERGSTIK® |
| Type | Male Pin |
| Mounting | Through Hole |
| Connector type | Header, Breakaway |
| Fastening type | Push-Pull |
| Current rating | 3A per Contact |
| Operating temperature | -65°C~130°C |
| Contact material | Phosphor Bronze |
| Insulation color | Black |
| Insulation height | 0.100\" (2.54mm) |
| Insulation material | Thermoplastic |
| Material flammability rating | UL94 V-0 |
| Parameter | Value |
|---|---|
| Style | Board to Board or Cable |
| Package | Tape & Reel (TR) |
| Shrouding | Unshrouded |
| Termination | Solder |
| Contact shape | Square |
| Rows | 2 |
| Pitch | 0.100\" (2.54mm) |
| Positions | 45000, Cuttable |
| Row spacing - mating | 0.100\" (2.54mm) |
| Contact finish - post | Tin |
| Contact length - post | 0.135\" (3.43mm) |
| Overall contact length | 0.465\" (11.81mm) |
| Contact finish - mating | Tin |
| Contact length - mating | 0.230\" (5.84mm) |
| Contact finish thickness - post | 78.7µin (2.00µm) |
| Contact finish thickness - mating | 78.7µin (2.00µm) |
The 77313-402-00LF: The strip is cuttable: the 2-position piece you order snaps off a longer reel, and the same base part number covers 4, 6, 8 positions and beyond from one inventory line.
In a board-to-board interconnect that is mated once at assembly, that is not a constraint; in a cable-to-board application that sees quarterly reconnects, budget for gold-plated siblings in the same BERGSTIK series.
The part number suffix 'LF' indicates lead-free / RoHS-compliant plating.
