Breakaway header with cuttable position strip

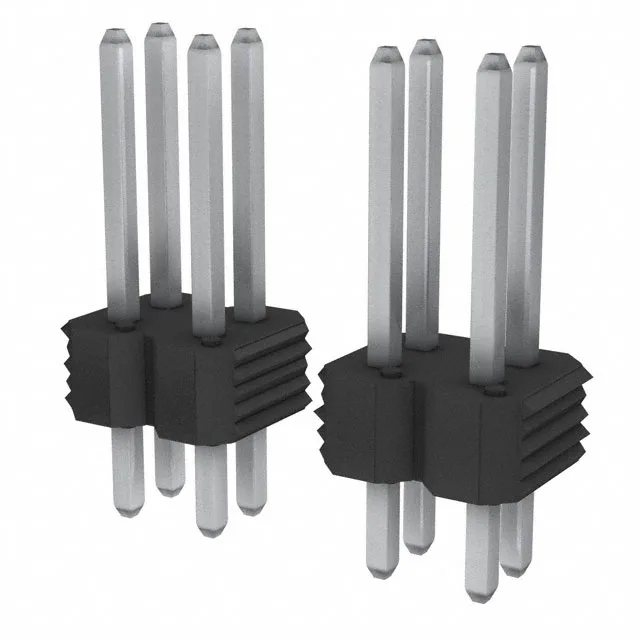

The 77313-422-00LF is a dual-row BERGSTIK® breakaway header from Amphenol ICC (FCI), unshrouded, with a cuttable position strip that allows the user to snap to the required circuit count.
Amphenol ICC BERGSTIK 77313-422-00LF Header, 2.54mm Pitch
MPN77313-422-00LF
Active
Amphenol ICC (FCI) BERGSTIK® header, breakaway, order code 77313-422-00LF, unshrouded, dual row, 0.100" (2.54mm) pitch, 3 A per contact, tin-plated mating and post, through hole, solder termination.
$0.4800Ref. price · indicative, final on quote
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Aug 2026
Specifications
| Parameter | Value |
|---|---|
| Series | BERGSTIK® |
| Type | Male Pin |
| Mounting | Through Hole |
| Connector type | Header, Breakaway |
| Fastening type | Push-Pull |
| Current rating | 3A per Contact |
| Operating temperature | -65°C~130°C |
| Contact material | Phosphor Bronze |
| Insulation color | Black |
| Insulation height | 0.100\" (2.54mm) |
| Insulation material | Thermoplastic |
| Material flammability rating | UL94 V-0 |
All specifications
| Parameter | Value |
|---|---|
| Style | Board to Board or Cable |
| Package | Tape & Reel (TR) |
| Shrouding | Unshrouded |
| Termination | Solder |
| Contact shape | Square |
| Rows | 2 |
| Pitch | 0.100\" (2.54mm) |
| Positions | 45000, Cuttable |
| Row spacing - mating | 0.100\" (2.54mm) |
| Contact finish - post | Tin |
| Contact length - post | 0.120\" (3.05mm) |
| Overall contact length | 0.526\" (13.35mm) |
| Contact finish - mating | Tin |
| Contact length - mating | 0.305\" (7.75mm) |
| Contact finish thickness - post | 78.7µin (2.00µm) |
| Contact finish thickness - mating | 78.7µin (2.00µm) |
Product details
Frequently asked questions
What compliance documentation is available for 77313-422-00LF?
The insulator is rated UL94 V-0. RoHS and REACH compliance documentation is provided by Amphenol ICC (FCI) — consult the product drawing or the manufacturer's compliance portal for the current declarations.
