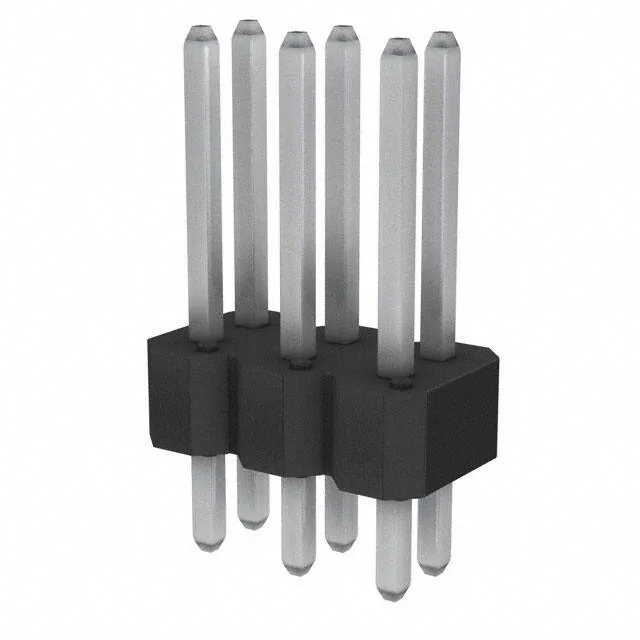

Amphenol ICC (FCI) BERGSTIK® unshrouded breakaway header, 6 positions, 2 rows, 0.100" pitch, through-hole solder termination, tin-plated contacts, UL94 V-0 black thermoplastic housing.
77313-422-06LF Amphenol ICC BERGSTIK® Header 6-Pin 0.100"
MPN77313-422-06LF
Active
Amphenol ICC (FCI) BERGSTIK® unshrouded breakaway header, 6 positions, 2 rows, 0.100" pitch, through-hole solder termination, tin-plated contacts, UL94 V-0 black thermoplastic housing.
$0.3463Ref. price · indicative, final on quote
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Aug 2026
Specifications
| Parameter | Value |
|---|---|
| Series | BERGSTIK® |
| Type | Male Pin |
| Mounting | Through Hole |
| Connector type | Header, Breakaway |
| Fastening type | Push-Pull |
| Current rating | 3A per Contact |
| Operating temperature | -65°C~130°C |
| Contact material | Phosphor Bronze |
| Insulation color | Black |
| Insulation height | 0.100\" (2.54mm) |
| Insulation material | Thermoplastic |
| Material flammability rating | UL94 V-0 |
All specifications
| Parameter | Value |
|---|---|
| Style | Board to Board or Cable |
| Package | Bag |
| Shrouding | Unshrouded |
| Termination | Solder |
| Contact shape | Square |
| Rows | 2 |
| Pitch | 0.100\" (2.54mm) |
| Positions | 6 |
| Row spacing - mating | 0.100\" (2.54mm) |
| Contact finish - post | Tin |
| Contact length - post | 0.120\" (3.05mm) |
| Overall contact length | 0.526\" (13.35mm) |
| Contact finish - mating | Tin |
| Contact length - mating | 0.305\" (7.75mm) |
| Contact finish thickness - post | 78.7µin (2.00µm) |
| Contact finish thickness - mating | 78.7µin (2.00µm) |
Product details
Frequently asked questions
What is the exact number of pins on 77313-422-06LF?
6 positions, all loaded, in two rows.
Is 77313-422-06LF RoHS compliant?
The part number carries the LF suffix indicating RoHS compliance.
