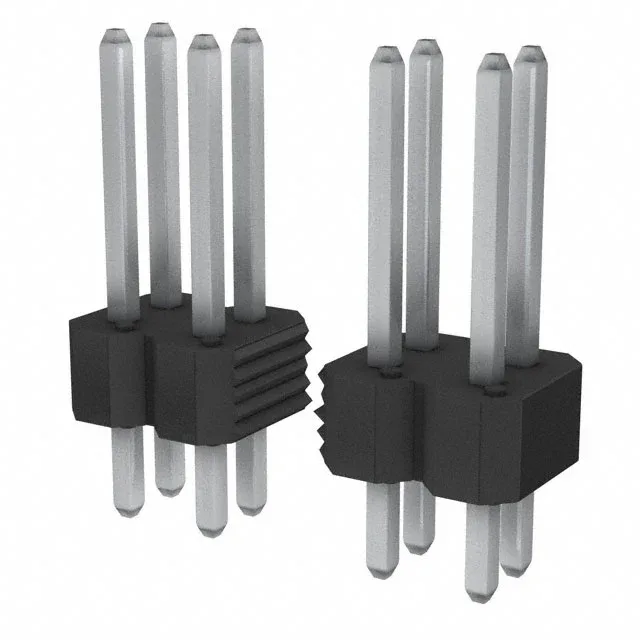

Amphenol ICC (FCI) BERGSTIK header, order code 77313-422-54LF, 54 positions, dual row, 0.100" (2.54mm) pitch, 3A per contact, tin-plated mating and post contacts, through hole, solder termination.
77313-422-54LF Amphenol ICC BERGSTIK Header 54 Pos 2.54mm
MPN77313-422-54LF
Active
Amphenol ICC (FCI) BERGSTIK header, order code 77313-422-54LF, 54 positions, dual row, 0.100" (2.54mm) pitch, 3A per contact, tin-plated mating and post contacts, through hole, solder termination.
$1.0234Ref. price · indicative, final on quote
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Aug 2026
Specifications
| Parameter | Value |
|---|---|
| Series | BERGSTIK® |
| Type | Male Pin |
| Mounting | Through Hole |
| Connector type | Header, Breakaway |
| Fastening type | Push-Pull |
| Current rating | 3A per Contact |
| Operating temperature | -65°C ~ 130°C |
| Contact material | Phosphor Bronze |
| Insulation color | Black |
| Insulation height | 0.100\" (2.54mm) |
| Insulation material | Thermoplastic |
| Material flammability rating | UL94 V-0 |
All specifications
| Parameter | Value |
|---|---|
| Style | Board to Board or Cable |
| Package | Bag |
| Shrouding | Unshrouded |
| Termination | Solder |
| Contact shape | Square |
| Rows | 2 |
| Pitch | 0.100\" (2.54mm) |
| Positions | 54 |
| Row spacing - mating | 0.100\" (2.54mm) |
| Contact finish - post | Tin |
| Contact length - post | 0.120\" (3.05mm) |
| Overall contact length | 0.526\" (13.35mm) |
| Contact finish - mating | Tin |
| Contact length - mating | 0.305\" (7.75mm) |
| Contact finish thickness - post | 78.7µin (2.00µm) |
| Contact finish thickness - mating | 78.7µin (2.00µm) |
Product details
Frequently asked questions
What is the closest pin-compatible alternative to 77313-422-54LF in this Pin Headers, Sockets & Housings family?
Within the BERGSTIK series, the 77313-422-54LF is the 54-position member. No single pin-compatible alternative is listed; match the position count to the circuit count.
What compliance documentation does Amphenol ICC (FCI) provide for 77313-422-54LF?
RoHS and REACH compliance documentation is available from the manufacturer; no specific certificate is listed in the catalog record.
