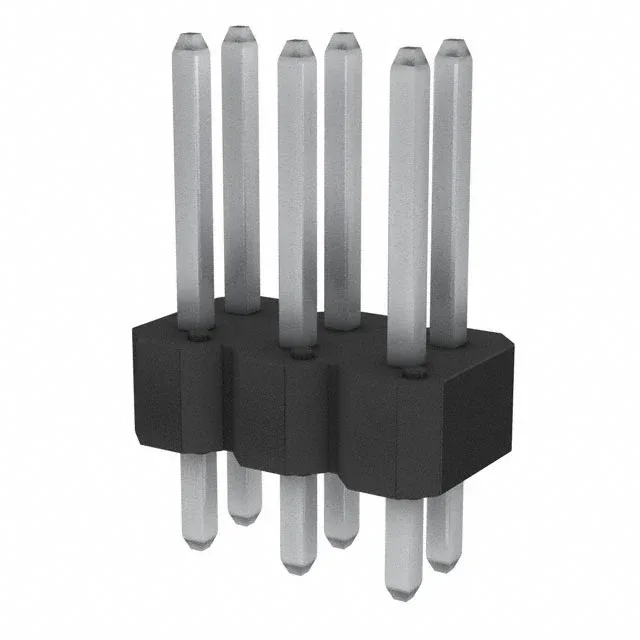

Amphenol ICC (FCI) BERGSTIK® 77313-424-06LF, 6-position unshrouded breakaway header, 2.54mm pitch, through-hole, tin-plated contacts, rated 3 A per contact, UL94 V-0 black thermoplastic housing.
| Parameter | Value |
|---|---|
| Series | BERGSTIK® |
| Type | Male Pin |
| Mounting | Through Hole |
| Connector type | Header, Breakaway |
| Fastening type | Push-Pull |
| Current rating | 3A per Contact |
| Operating temperature | -65°C~130°C |
| Contact material | Phosphor Bronze |
| Insulation color | Black |
| Insulation height | 0.100\" (2.54mm) |
| Insulation material | Thermoplastic |
| Material flammability rating | UL94 V-0 |
| Parameter | Value |
|---|---|
| Style | Board to Board or Cable |
| Package | Bulk |
| Shrouding | Unshrouded |
| Termination | Solder |
| Contact shape | Square |
| Rows | 2 |
| Pitch | 0.100\" (2.54mm) |
| Positions | 6 |
| Row spacing - mating | 0.100\" (2.54mm) |
| Contact finish - post | Tin |
| Contact length - post | 0.114\" (2.90mm) |
| Overall contact length | 0.480\" (12.19mm) |
| Contact finish - mating | Tin |
| Contact length - mating | 0.266\" (6.75mm) |
| Contact finish thickness - post | 78.7µin (2.00µm) |
| Contact finish thickness - mating | 78.7µin (2.00µm) |
The 77313-424-06LF: The push-pull fastening relies on friction from the mating receptacle's contact beams; in high-vibration settings, a secondary retention method (e.g., wire ties or potting) is worth considering.
Tin works well for low-cycle, low-voltage signal paths in dry indoor environments.
If your application requires higher mating-cycle life or better corrosion resistance, the gold-plated version is the direct swap.
The mating pitch is 0.100" (2.54mm) and the row spacing is also 0.100" (2.54mm). This is a dual-row, 6-position header with all positions loaded.
