20-position unshrouded header
The 77313-495-20LF is the 20-circuit member of Amphenol ICC's BERGSTIK breakaway header line, dual-row, unshrouded, with push-pull fastening. The through-hole solder tails measure 0.142" (3.60 mm) long.

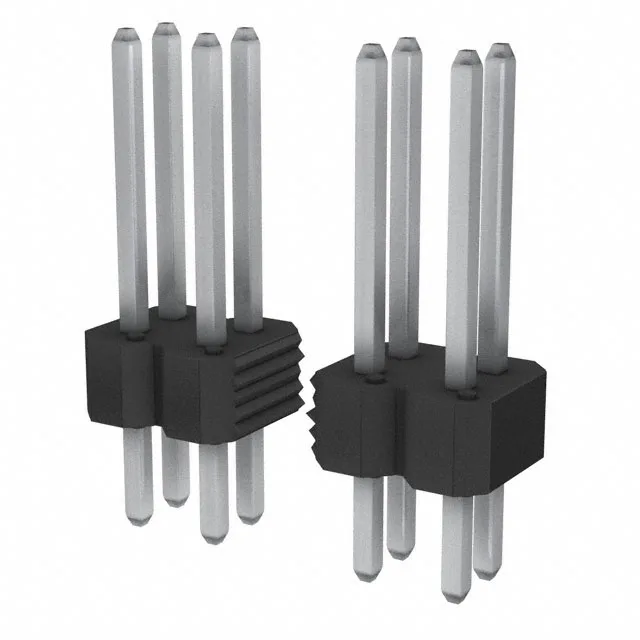

Amphenol ICC BERGSTIK 77313-495-20LF Header, 20 Pos, 2.54mm
MPN77313-495-20LF
Active
Amphenol ICC (FCI) BERGSTIK header, breakaway, order code 77313-495-20LF, 20 positions, dual row, 0.100" (2.54 mm) pitch, unshrouded, tin-plated mating contacts, through hole, solder termination.
$0.7786Ref. price · indicative, final on quote
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent supplier — new & surplus connector stock· Listing updated Aug 2026
Specifications
| Parameter | Value |
|---|---|
| Series | BERGSTIK® |
| Type | Male Pin |
| Mounting | Through Hole |
| Connector type | Header, Breakaway |
| Fastening type | Push-Pull |
| Current rating | 3A per Contact |
| Operating temperature | -65°C~130°C |
| Contact material | Phosphor Bronze |
| Insulation color | Black |
| Insulation height | 0.100\" (2.54mm) |
| Insulation material | Thermoplastic |
| Material flammability rating | UL94 V-0 |
All specifications
| Parameter | Value |
|---|---|
| Style | Board to Board or Cable |
| Package | Bag |
| Shrouding | Unshrouded |
| Termination | Solder |
| Contact shape | Square |
| Rows | 2 |
| Pitch | 0.100\" (2.54mm) |
| Positions | 20 |
| Row spacing - mating | 0.100\" (2.54mm) |
| Contact finish - post | Tin |
| Contact length - post | 0.142\" (3.60mm) |
| Overall contact length | 0.594\" (15.09mm) |
| Contact finish - mating | Tin |
| Contact length - mating | 0.350\" (8.89mm) |
| Contact finish thickness - post | 78.7µin (2.00µm) |
| Contact finish thickness - mating | 78.7µin (2.00µm) |
