Amphenol ICC (FCI) BERGSTIK® series, unshrouded breakaway header, 36 circuits, 2 rows, 0.100" (2.54 mm) pitch, through-hole solder termination, gold or GXT™ mating finish, rated 3 A per contact, UL94 V-0.
| Parameter | Value |
|---|---|
| Series | BERGSTIK® |
| Type | Male Pin |
| Mounting | Through Hole |
| Connector type | Header, Breakaway |
| Fastening type | Push-Pull |
| Current rating | 3A per Contact |
| Operating temperature | -65°C~130°C |
| Contact material | Phosphor Bronze |
| Insulation color | Black |
| Insulation height | 0.100\" (2.54mm) |
| Insulation material | Thermoplastic |
| Material flammability rating | UL94 V-0 |
| Parameter | Value |
|---|---|
| Style | Board to Board or Cable |
| Package | Bag |
| Shrouding | Unshrouded |
| Termination | Solder |
| Contact shape | Square |
| Rows | 2 |
| Pitch | 0.100\" (2.54mm) |
| Positions | 36 |
| Row spacing - mating | 0.100\" (2.54mm) |
| Contact finish - post | Tin |
| Contact length - post | 0.135\" (3.43mm) |
| Overall contact length | 0.465\" (11.81mm) |
| Contact finish - mating | Gold or Gold, GXT™ |
| Contact length - mating | 0.230\" (5.84mm) |
| Contact finish thickness - post | 78.7µin (2.00µm) |
| Contact finish thickness - mating | 15.0µin (0.38µm) |

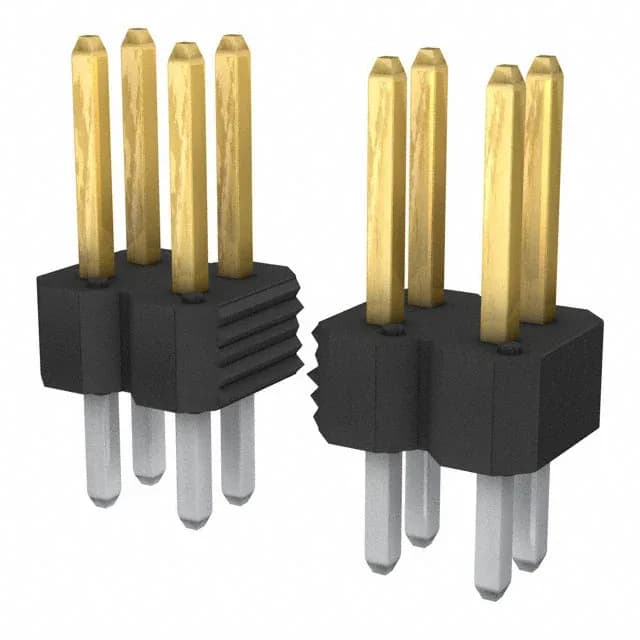

The 77313-802-36LF: 36 positions, all loaded, in a dual-row layout.
For a 36-position header carrying signals, the aggregate current stays well within the housing thermal limits, but if you push several adjacent pins near 3 A, the temperature rise in that cluster needs a derating check. The UL94 V-0 thermoplastic housing holds its shape across that span.
Yes — the BERGSTIK® breakaway design lets you snap the 36-position strip to a shorter length for custom circuit counts.
The mated stack height depends on the receptacle thickness — typically the mating length plus the receptacle insulation height.
