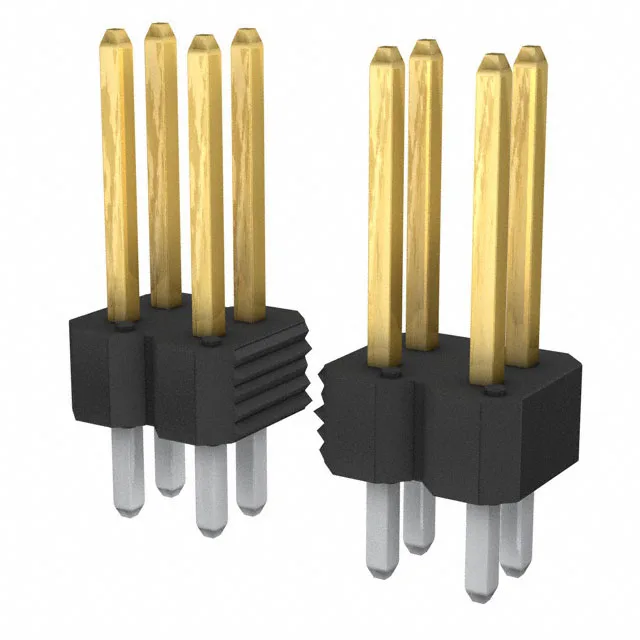

77313-822-72 — Amphenol product photo
Amphenol

77313-822-72 BERGSTIK® Header 72 Pos 0.100" Pitch Obsolete

MPN77313-822-72
Obsolete

Amphenol ICC (FCI) BERGSTIK® series, 77313-822-72, unshrouded breakaway header, 72 positions, dual-row, 0.100" (2.54 mm) pitch, through-hole solder termination, male pin square contacts, gold or GXT™ mating finish, UL94 V-0 black thermoplastic housing.

$2.8194Ref. price · indicative, final on quote
77313-822-72 datasheet
StockContact for availability
MOQ1 pcs
  • New & original stockTraceable channels only — no mixed lots, no re-taped reels.
  • Factory packaging where availableSealed reels, trays and bags; cut quantities always stated on the quote.
  • Photo-verified countsEvery line counted and photographed before the box closes.
  • PayPal buyer protectionPay by T/T, PayPal or Payoneer — card payments covered end to end.
How we verify every order →

Specifications

77313-822-72 Technical Specifications
ParameterValue
SeriesBERGSTIK®
GenderMale Pin
Mounting typeThrough Hole
Connector typeHeader, Breakaway
Fastening typePush-Pull
Contact materialPhosphor Bronze
Insulation colorBlack
Insulation height0.100\" (2.54mm)
Insulation materialThermoplastic
Material flammability ratingUL94 V-0
StyleBoard to Board or Cable
PackageBulk
ShroudingUnshrouded
TerminationSolder
Contact shapeSquare
Rows2
Pitch0.100\" (2.54mm)
Positions72
Row spacing - mating0.100\" (2.54mm)
Contact finish - postTin-Lead
Contact length - post0.120\" (3.05mm)
Overall contact length0.526\" (13.35mm)
Contact finish - matingGold or Gold, GXT™
Contact length - mating0.305\" (7.75mm)
Contact finish thickness - post150.0µin (3.81µm)
Contact finish thickness - mating15.0µin (0.38µm)

Product details

Board Footprint and Pinout for a 72-Position Breakaway

The 77313-822-72: The breakaway design lets you snap the strip to the exact position count your board needs — but at 72 positions loaded, it ships as a full-length strip.

Plating Grade and Mating Cycle Life

The post finish is tin-lead at 150.0 µinch (3.81 µm), which wets well during wave solder.

Flammability and Housing Material

No secondary lock or shroud; the push-pull fastening means the mating receptacle relies on the header's pin friction for retention.

Sourcing an Obsolete BERGSTIK® Header

This part is marked Obsolete by Amphenol ICC (FCI). It is available through independent distribution channels — quantities are lot-specific and confirmed at RFQ. The base product number is 77313; if you need a different position count or plating option within the same series, that may be a faster path.

Frequently asked questions

What is the replacement for 77313-822-72?

No official replacement or pin-compatible alternative is listed by Amphenol ICC (FCI) for this obsolete part. For a drop-in substitute, a board respin may be required.
