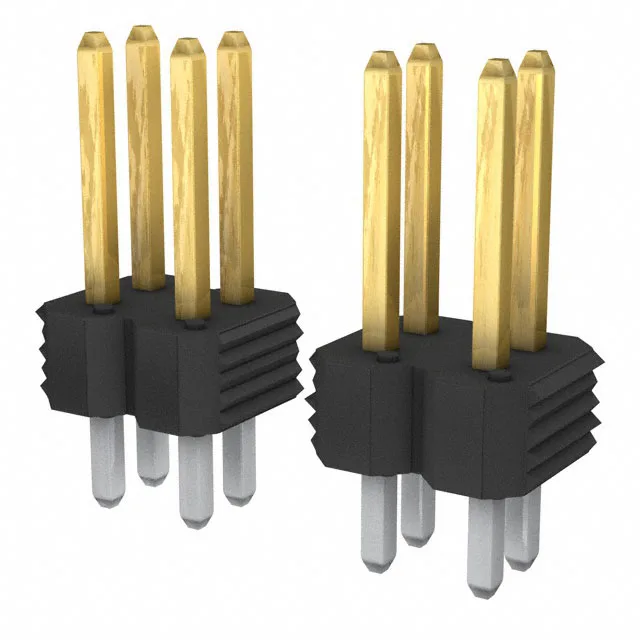

Amphenol ICC (FCI) BERGSTIK® header, order code 77313-824-00LF, unshrouded, dual row, 0.100" (2.54 mm) pitch, 3 A per contact, gold-plated mating contacts, through-hole, solder termination.
| Parameter | Value |
|---|---|
| Series | BERGSTIK® |
| Type | Male Pin |
| Mounting | Through Hole |
| Connector type | Header, Breakaway |
| Fastening type | Push-Pull |
| Current rating | 3A per Contact |
| Operating temperature | -65°C~130°C |
| Contact material | Phosphor Bronze |
| Insulation color | Black |
| Insulation height | 0.100\" (2.54mm) |
| Insulation material | Thermoplastic |
| Material flammability rating | UL94 V-0 |
| Parameter | Value |
|---|---|
| Style | Board to Board or Cable |
| Package | Tape & Reel (TR) |
| Shrouding | Unshrouded |
| Termination | Solder |
| Contact shape | Square |
| Rows | 2 |
| Pitch | 0.100\" (2.54mm) |
| Positions | 45000, Cuttable |
| Row spacing - mating | 0.100\" (2.54mm) |
| Contact finish - post | Tin |
| Contact length - post | 0.114\" (2.90mm) |
| Overall contact length | 0.480\" (12.19mm) |
| Contact finish - mating | Gold or Gold, GXT™ |
| Contact length - mating | 0.266\" (6.75mm) |
| Contact finish thickness - post | 78.7µin (2.00µm) |
| Contact finish thickness - mating | 15.0µin (0.38µm) |
The 77313-824-00LF: The housing is rated UL94 V-0.
The 45000-position strip is cut to length at the build, so the same base product number covers any even circuit count up to the full strip.
The 77313-824-00LF is obsolete and available through independent surplus channels. Submit a request for quote with the target quantity.
The functional replacement would require a different package and pinout — a board spin is needed.
