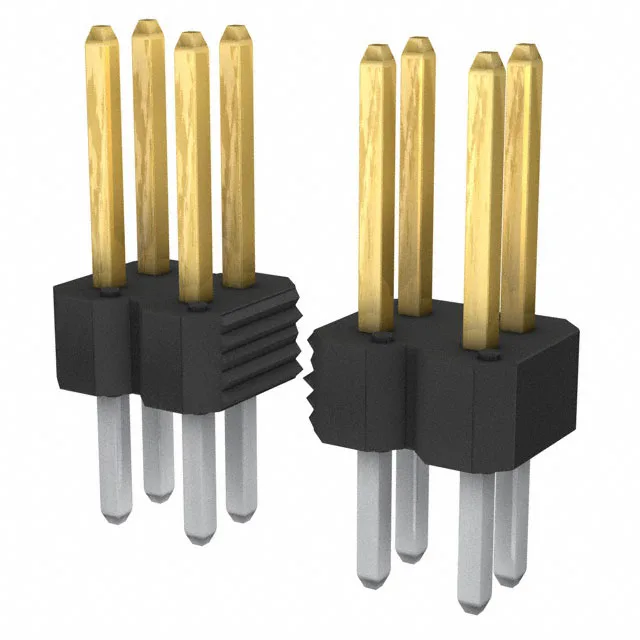

77313-890-24LF BERGSTIK® 24-Pin Breakaway Header

MPN77313-890-24LF
Active

Amphenol ICC (FCI) BERGSTIK® series, 77313-890-24LF, 24-position dual-row unshrouded breakaway header, 0.100" (2.54 mm) pitch, through-hole solder termination, gold or GXT™ mating finish, rated 3 A per contact.

$0.5901Ref. price · indicative, final on quote
77313-890-24LF datasheet
StockContact for availability
Lead timeIn Stock wk
MOQ1 pcs
  • New & original stockTraceable channels only — no mixed lots, no re-taped reels.
  • Factory packaging where availableSealed reels, trays and bags; cut quantities always stated on the quote.
  • Photo-verified countsEvery line counted and photographed before the box closes.
  • PayPal buyer protectionPay by T/T, PayPal or Payoneer — card payments covered end to end.
How we verify every order →

Specifications

77313-890-24LF Technical Specifications
ParameterValue
SeriesBERGSTIK®
GenderMale Pin
Mounting typeThrough Hole
Connector typeHeader, Breakaway
Fastening typePush-Pull
Current rating3A per Contact
Operating temperature-65°C ~ 130°C
Contact materialPhosphor Bronze
Insulation colorBlack
Insulation height0.100\" (2.54mm)
Insulation materialThermoplastic
Material flammability ratingUL94 V-0
StyleBoard to Board or Cable
PackageBag
ShroudingUnshrouded
TerminationSolder
Contact shapeSquare
Rows2
Pitch0.100\" (2.54mm)
Positions24
Row spacing - mating0.100\" (2.54mm)
Contact finish - postTin
Contact length - post0.159\" (4.05mm)
Overall contact length0.525\" (13.34mm)
Contact finish - matingGold or Gold, GXT™
Contact length - mating0.266\" (6.75mm)
Contact finish thickness - post78.7µin (2.00µm)
Contact finish thickness - mating15.0µin (0.38µm)

Product details

The unshrouded design (no plastic shroud around the pins) means the mating connector must be keyed by the PCB layout, not by the header itself. The through-hole solder tails (0.159" post length) provide a mechanically robust joint that resists shear from cable strain better than an SMT equivalent.

The part is RoHS-compliant per the LF suffix in the order code.

Board Layout and Mating Compatibility

Mates with standard 0.100-inch pitch IDC sockets (e.g., 3M, TE, Amphenol) or discrete crimp housings that accept 0.025" square pins.
