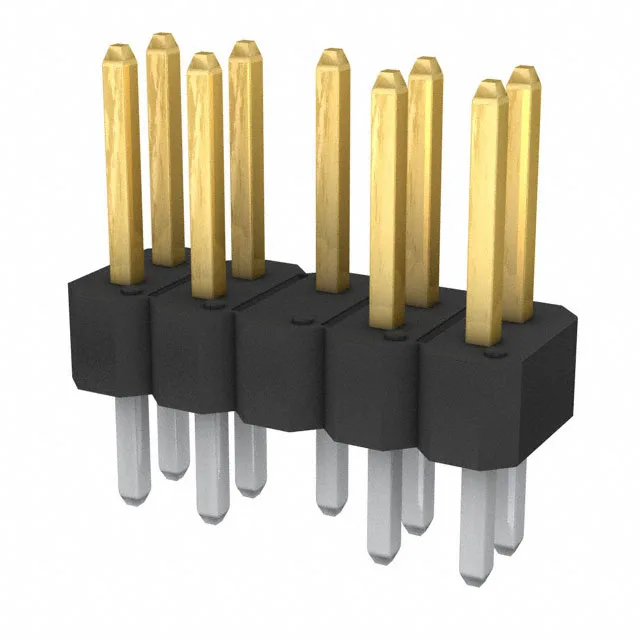

Amphenol ICC (FCI) BERGSTIK, 77314-160LF, Header, Breakaway, 10 positions (9 loaded), 2 rows, 0.100" (2.54mm) pitch, unshrouded, through-hole solder, 30µin gold GXT mating, 3A, -65°C~130°C, UL94 V-0.
| Parameter | Value |
|---|---|
| Series | BERGSTIK® |
| Type | Male Pin |
| Mounting | Through Hole |
| Connector type | Header, Breakaway |
| Fastening type | Push-Pull |
| Current rating | 3A |
| Operating temperature | -65°C~130°C |
| Contact material | Phosphor Bronze |
| Insulation color | Black |
| Insulation height | 0.100\" (2.54mm) |
| Insulation material | Thermoplastic |
| Material flammability rating | UL94 V-0 |
| Parameter | Value |
|---|---|
| Style | Board to Board or Cable |
| Package | Bag |
| Shrouding | Unshrouded |
| Termination | Solder |
| Contact shape | Square |
| Rows | 2 |
| Pitch | 0.100\" (2.54mm) |
| Positions | 10 |
| Row spacing - mating | 0.100\" (2.54mm) |
| Contact finish - post | Tin |
| Contact length - post | 0.135\" (3.43mm) |
| Overall contact length | 0.465\" (11.81mm) |
| Contact finish - mating | Gold, GXT™ |
| Contact length - mating | 0.230\" (5.84mm) |
| Contact finish thickness - post | 78.7µin (2.00µm) |
| Contact finish thickness - mating | 30.0µin (0.76µm) |
The 77314-160LF: The mating surface carries 30.0 µinch (0.76 µm) gold over GXT — a hard gold alloy that withstands repeated mating cycles without exposing the base phosphor bronze. In a field-service application cycled quarterly, this plating supports decades of reliable contact.
No minimum order quantity is implied.
We source 77314-160LF through independent distribution channels. No stock-holding claim is made — each order is sourced per your BOM.
The BERGSTIK II series receptacles are a common match, but any connector accepting 0.025" square pins at this pitch will fit.
