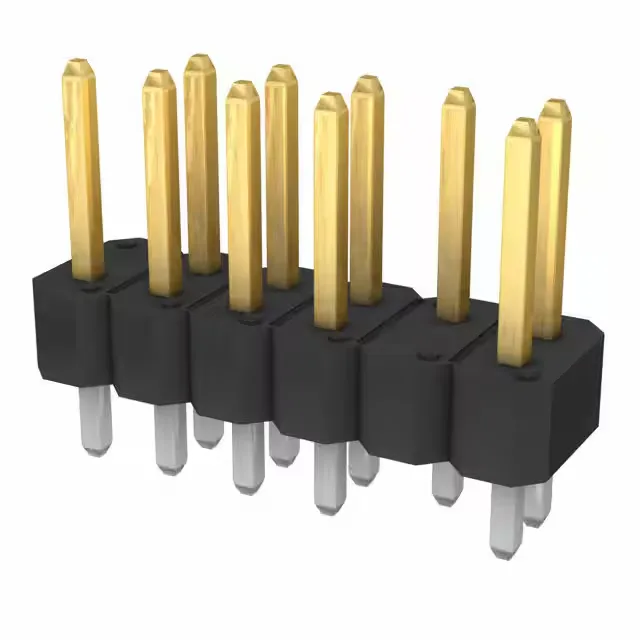

77314-163LF — Amphenol product photo
Amphenol

77314-163LF BERGSTIK® Header, 10 of 12 Positions

MPN77314-163LF
Active

Amphenol ICC (FCI) BERGSTIK® series, 12-position (10 loaded) unshrouded breakaway header, 2-row, 0.100" (2.54 mm) pitch, through-hole solder termination, 30 µinch gold GXT mating finish, rated 3 A per contact.

$0.5742Ref. price · indicative, final on quote
77314-163LF datasheet
StockContact for availability
Lead timeIn Stock wk
MOQ1 pcs
  • New & original stockTraceable channels only — no mixed lots, no re-taped reels.
  • Factory packaging where availableSealed reels, trays and bags; cut quantities always stated on the quote.
  • Photo-verified countsEvery line counted and photographed before the box closes.
  • PayPal buyer protectionPay by T/T, PayPal or Payoneer — card payments covered end to end.
How we verify every order →

Specifications

77314-163LF Technical Specifications
ParameterValue
SeriesBERGSTIK®
GenderMale Pin
Mounting typeThrough Hole
Connector typeHeader, Breakaway
Fastening typePush-Pull
Current rating3A
Operating temperature-65°C~130°C
Contact materialPhosphor Bronze
Insulation colorBlack
Insulation height0.100\" (2.54mm)
Insulation materialThermoplastic
Material flammability ratingUL94 V-0
StyleBoard to Board or Cable
PackageBag
ShroudingUnshrouded
TerminationSolder
Contact shapeSquare
Rows2
Pitch0.100\" (2.54mm)
Positions12
Row spacing - mating0.100\" (2.54mm)
Contact finish - postTin
Contact length - post0.100\" (2.54mm)
Overall contact length0.425\" (10.80mm)
Contact finish - matingGold, GXT™
Contact length - mating0.225\" (5.72mm)
Contact finish thickness - post78.7µin (2.00µm)
Contact finish thickness - mating30.0µin (0.76µm)

Product details

10 of 12 Positions — Breakaway Footprint

The 77314-163LF: This is a 12-position header with 10 positions loaded — the two empty pin sites are part of the breakaway design. The PCB footprint should match the full 12-position pattern; the unloaded positions can be left as bare pads or used for routing clearance.

Gold GXT Mating Surface — 30 µinch

The mismatch between gold mating face and tin tails is deliberate: gold on the wear interface, tin on the solder joint.

Through-Hole Assembly — No SMT Reflow

This part goes through wave solder or selective solder — not reflow.

Frequently asked questions

What is the closest pin-compatible alternative to 77314-163LF?

The fully loaded 12-position variant (same pitch, same plating) is a direct pin-compatible alternative if your BOM requires all 12 circuits. Check the base product number 77314 for other position counts in the same breakaway family.
