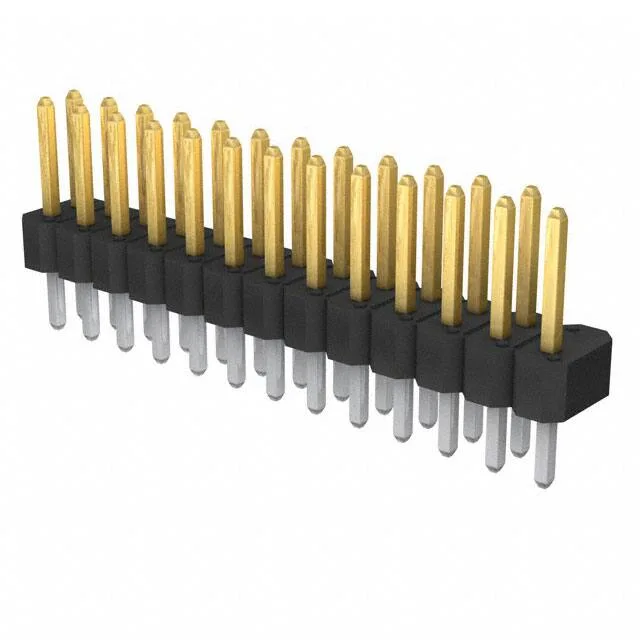

77314-168LF Amphenol ICC BERGSTIK Header, 26 Pos, 0.100"

MPN77314-168LF
Active

Amphenol ICC (FCI) BERGSTIK header, order code 77314-168LF, 26 positions (25 loaded), dual row, 0.100" (2.54mm) pitch, 3 A, gold GXT mating contacts, through-hole, solder termination.

$1.3443Ref. price · indicative, final on quote
77314-168LF datasheet
StockContact for availability
Lead timeIn Stock wk
MOQ1 pcs
  • New & original stockTraceable channels only — no mixed lots, no re-taped reels.
  • Factory packaging where availableSealed reels, trays and bags; cut quantities always stated on the quote.
  • Photo-verified countsEvery line counted and photographed before the box closes.
  • PayPal buyer protectionPay by T/T, PayPal or Payoneer — card payments covered end to end.
How we verify every order →

Specifications

77314-168LF Technical Specifications
ParameterValue
SeriesBERGSTIK®
GenderMale Pin
Mounting typeThrough Hole
Connector typeHeader, Breakaway
Fastening typePush-Pull
Current rating3A
Operating temperature-65°C~130°C
Contact materialPhosphor Bronze
Insulation colorBlack
Insulation height0.100\" (2.54mm)
Insulation materialThermoplastic
Material flammability ratingUL94 V-0
StyleBoard to Board or Cable
PackageBag
ShroudingUnshrouded
TerminationSolder
Contact shapeSquare
Rows2
Pitch0.100\" (2.54mm)
Positions26
Row spacing - mating0.100\" (2.54mm)
Contact finish - postTin
Contact length - post0.135\" (3.43mm)
Overall contact length0.465\" (11.81mm)
Contact finish - matingGold, GXT™
Contact length - mating0.230\" (5.84mm)
Contact finish thickness - post78.7µin (2.00µm)
Contact finish thickness - mating30.0µin (0.76µm)

Product details

26-circuit breakaway header, 25 loaded

The 77314-168LF is the 26-position member of Amphenol ICC's BERGSTIK breakaway header line, with position 25 loaded and one position left open for keying or routing clearance. It carries gold GXT mating contacts rated 3 A, mates at a 0.100" (2.54mm) pitch, and terminates through-hole with solder.

Position count and loaded profile

The 26-position 77314-168LF carries 25 loaded contacts — one position is unpopulated. The 0.100" pitch and dual-row layout are shared across the BERGSTIK series; the unloaded position provides a break in the pin field for polarity or trace routing without a separate keying pin.
