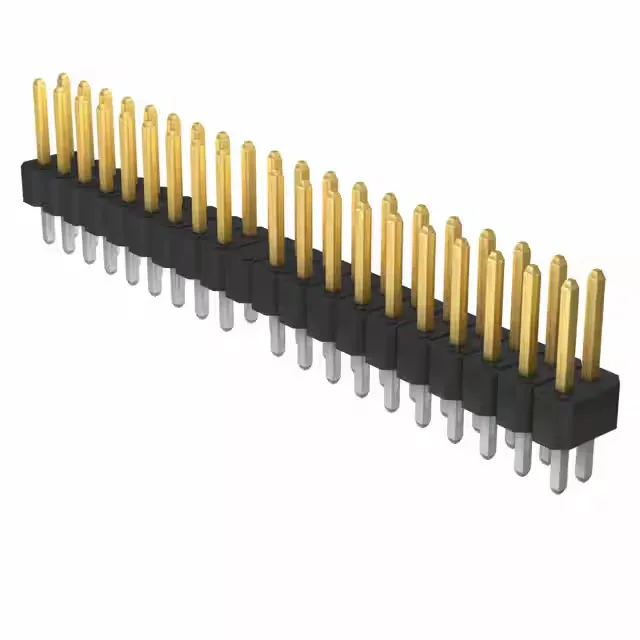

77314-171LF BERGSTIK Header, 39 Pos, 0.100" Pitch, Gold

MPN77314-171LF
Active

Amphenol ICC (FCI) BERGSTIK® series, 77314-171LF, 39-position (40 loaded, one unloaded) dual-row unshrouded breakaway header, 0.100" (2.54mm) pitch, through-hole solder termination, 30.0µin gold GXT on mating face, tin post, rated 3A per contact, -65°C~130°C, UL94 V-0.

$2.0272Ref. price · indicative, final on quote
77314-171LF datasheet
StockContact for availability
Lead timeIn Stock wk
MOQ1 pcs
  • New & original stockTraceable channels only — no mixed lots, no re-taped reels.
  • Factory packaging where availableSealed reels, trays and bags; cut quantities always stated on the quote.
  • Photo-verified countsEvery line counted and photographed before the box closes.
  • PayPal buyer protectionPay by T/T, PayPal or Payoneer — card payments covered end to end.
How we verify every order →

Specifications

77314-171LF Technical Specifications
ParameterValue
SeriesBERGSTIK®
GenderMale Pin
Mounting typeThrough Hole
Connector typeHeader, Breakaway
Fastening typePush-Pull
Current rating3A
Operating temperature-65°C~130°C
Contact materialPhosphor Bronze
Insulation colorBlack
Insulation height0.100\" (2.54mm)
Insulation materialThermoplastic
Material flammability ratingUL94 V-0
StyleBoard to Board or Cable
PackageBag
ShroudingUnshrouded
TerminationSolder
Contact shapeSquare
Rows2
Pitch0.100\" (2.54mm)
Positions40
Row spacing - mating0.100\" (2.54mm)
Contact finish - postTin
Contact length - post0.120\" (3.05mm)
Overall contact length0.445\" (11.30mm)
Contact finish - matingGold, GXT™
Contact length - mating0.225\" (5.72mm)
Contact finish thickness - post78.7µin (2.00µm)
Contact finish thickness - mating30.0µin (0.76µm)

Product details

39 Loaded Positions on a 40-Position Header

The 77314-171LF: This BERGSTIK header carries 39 loaded positions out of a 40-position dual-row layout — the one unloaded position is intentional, not a defect. It allows keying against a matching receptacle or routing a power/signal gap without cutting pins.

The tin-plated post (78.7µin) is the cost-optimised side for solder-joint reliability. The gold here buys you hundreds of mates without contact resistance drift.

Board Layout Fit and Termination

Unshrouded header — no shroud to block access, but the pins are exposed and require care during handling to avoid bending. Push-pull fastening; no locking latch, so not suited for high-vibration environments without a secondary retention method.

Frequently asked questions

Does 77314-171LF have a shroud?

No — it is an unshrouded header.

What is the closest pin-compatible alternative to 77314-171LF?

Within the BERGSTIK series, a 40-position fully loaded version (e.g., 77314-170LF) would be a drop-in replacement if you need all 40 positions populated. The 39-loaded variant here is specifically for keying or leaving one position empty.

Where can I buy 77314-171LF?

Availability and current pricing confirmed at quote time.
