Position count — 33 loaded of 34
The 77314-190LF: The header carries 34 positions in a dual-row layout, with position 1 omitted so only 33 positions are loaded — a common breakaway pattern for keying or routing clearance.

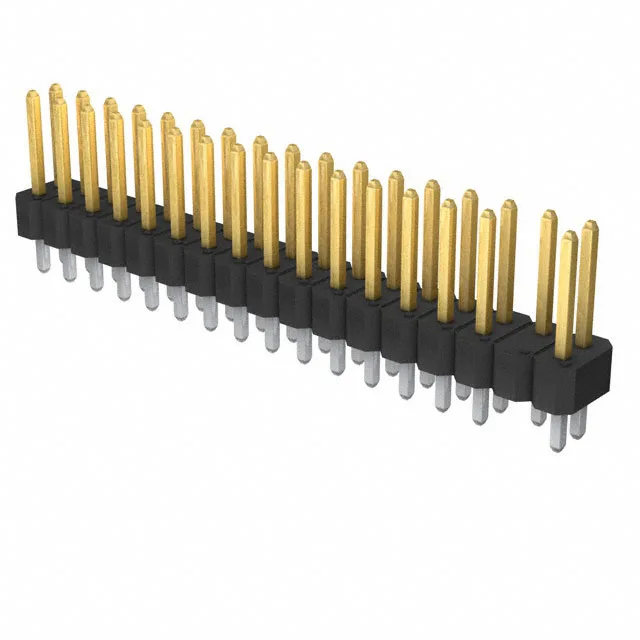

Amphenol ICC BERGSTIK 77314-190LF Header, 34 Pos, 2.54mm
MPN77314-190LF
Active
Amphenol ICC BERGSTIK® header, breakaway, order code 77314-190LF, 34 positions (33 loaded), dual row, 0.100" (2.54 mm) pitch, 3 A, gold GXT™ mating contacts, through-hole, solder termination.
$1.7163Ref. price · indicative, final on quote
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent supplier — new & surplus connector stock· Listing updated Aug 2026
Specifications
| Parameter | Value |
|---|---|
| Series | BERGSTIK® |
| Type | Male Pin |
| Mounting | Through Hole |
| Connector type | Header, Breakaway |
| Fastening type | Push-Pull |
| Current rating | 3A |
| Operating temperature | -65°C~130°C |
| Contact material | Phosphor Bronze |
| Insulation color | Black |
| Insulation height | 0.100\" (2.54mm) |
| Insulation material | Thermoplastic |
| Material flammability rating | UL94 V-0 |
All specifications
| Parameter | Value |
|---|---|
| Style | Board to Board or Cable |
| Package | Bag |
| Shrouding | Unshrouded |
| Termination | Solder |
| Contact shape | Square |
| Rows | 2 |
| Pitch | 0.100\" (2.54mm) |
| Positions | 34 |
| Row spacing - mating | 0.100\" (2.54mm) |
| Contact finish - post | Tin |
| Contact length - post | 0.105\" (2.67mm) |
| Overall contact length | 0.465\" (11.81mm) |
| Contact finish - mating | Gold, GXT™ |
| Contact length - mating | 0.260\" (6.60mm) |
| Contact finish thickness - post | 78.7µin (2.00µm) |
| Contact finish thickness - mating | 30.0µin (0.76µm) |
