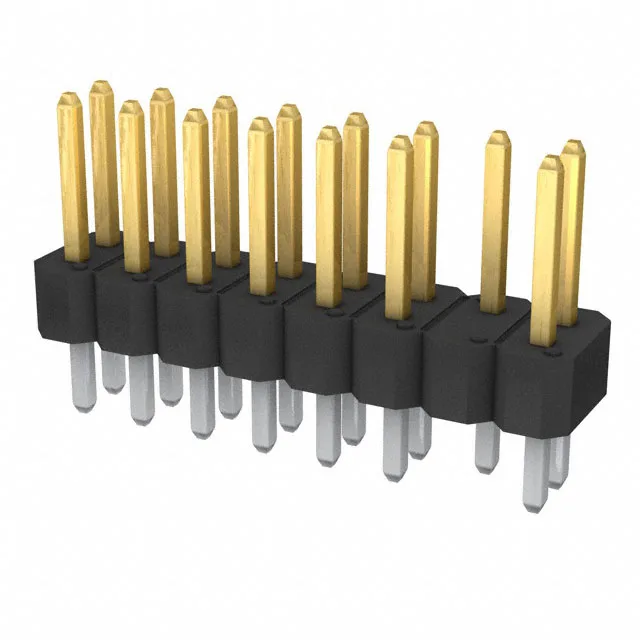

Amphenol ICC (FCI) BERGSTIK® header, order code 77314-192LF, 16 positions (15 loaded), dual row, 0.100" (2.54mm) pitch, 3A, gold GXT™ mating contacts, through-hole, solder termination.
| Parameter | Value |
|---|---|
| Series | BERGSTIK® |
| Type | Male Pin |
| Mounting | Through Hole |
| Connector type | Header, Breakaway |
| Fastening type | Push-Pull |
| Current rating | 3A |
| Operating temperature | -65°C~130°C |
| Contact material | Phosphor Bronze |
| Insulation color | Black |
| Insulation height | 0.100\" (2.54mm) |
| Insulation material | Thermoplastic |
| Material flammability rating | UL94 V-0 |
| Parameter | Value |
|---|---|
| Style | Board to Board or Cable |
| Package | Bag |
| Shrouding | Unshrouded |
| Termination | Solder |
| Contact shape | Square |
| Rows | 2 |
| Pitch | 0.100\" (2.54mm) |
| Positions | 16 |
| Row spacing - mating | 0.100\" (2.54mm) |
| Contact finish - post | Tin |
| Contact length - post | 0.120\" (3.05mm) |
| Overall contact length | 0.445\" (11.30mm) |
| Contact finish - mating | Gold, GXT™ |
| Contact length - mating | 0.225\" (5.72mm) |
| Contact finish thickness - post | 78.7µin (2.00µm) |
| Contact finish thickness - mating | 30.0µin (0.76µm) |
The 77314-192LF is the 16-position (15 loaded) dual-row member of Amphenol ICC's BERGSTIK® breakaway header line. Unshrouded through-hole header with 0.100" pitch, gold GXT™ mating contacts, and a 3A current rating per contact.
The 77314-192LF carries 16 pin positions but loads only 15 — the unloaded station allows the board designer to omit a circuit without changing the footprint or the mating half.
