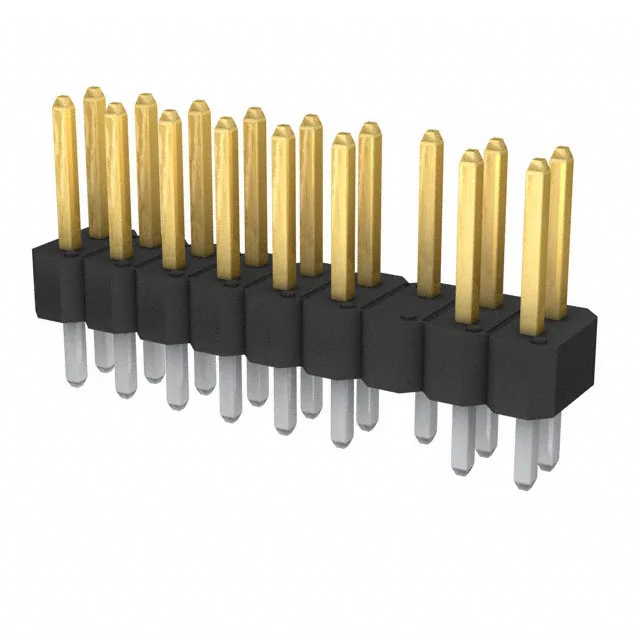

Amphenol ICC 77314-197LF BERGSTIK Header, 18-Pos, 2.54mm

MPN77314-197LF
Active

Amphenol ICC (FCI) BERGSTIK® header, order code 77314-197LF, 18 positions (17 loaded), dual row, 0.100" (2.54 mm) pitch, 3 A, gold GXT™ mating contacts, through-hole, solder termination.

$0.9157Ref. price · indicative, final on quote
77314-197LF datasheet
StockContact for availability
Lead timeIn Stock wk
MOQ1 pcs
  • New & original stockTraceable channels only — no mixed lots, no re-taped reels.
  • Factory packaging where availableSealed reels, trays and bags; cut quantities always stated on the quote.
  • Photo-verified countsEvery line counted and photographed before the box closes.
  • PayPal buyer protectionPay by T/T, PayPal or Payoneer — card payments covered end to end.
How we verify every order →

Specifications

77314-197LF Technical Specifications
ParameterValue
SeriesBERGSTIK®
GenderMale Pin
Mounting typeThrough Hole
Connector typeHeader, Breakaway
Fastening typePush-Pull
Current rating3A
Operating temperature-65°C~130°C
Contact materialPhosphor Bronze
Insulation colorBlack
Insulation height0.100\" (2.54mm)
Insulation materialThermoplastic
Material flammability ratingUL94 V-0
StyleBoard to Board or Cable
PackageBag
ShroudingUnshrouded
TerminationSolder
Contact shapeSquare
Rows2
Pitch0.100\" (2.54mm)
Positions18
Row spacing - mating0.100\" (2.54mm)
Contact finish - postTin
Contact length - post0.120\" (3.05mm)
Overall contact length0.453\" (11.50mm)
Contact finish - matingGold, GXT™
Contact length - mating0.230\" (5.84mm)
Contact finish thickness - post78.7µin (2.00µm)
Contact finish thickness - mating30.0µin (0.76µm)

Product details

Through-hole breakaway at 0.100" pitch

The 77314-197LF is the 18-position (17 loaded) member of Amphenol ICC's BERGSTIK® header line, a dual-row breakaway style for board-to-board or cable interconnects.

One position depopulated — 17 loaded of 18

The 77314-197LF carries 17 loaded positions out of 18 possible pin locations. The unloaded position is a deliberate depopulation in the breakaway strip — the pitch, row spacing, and plating are shared across the BERGSTIK® series, so the circuit count is the selection axis.

Active production, bagged

Amphenol ICC (FCI) lists the 77314-197LF as Active. It ships in a bag, per the package listing.
