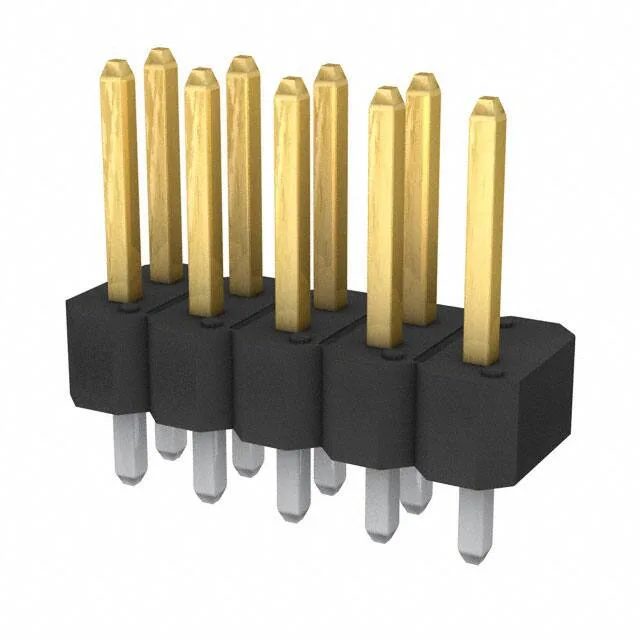

Amphenol BERGSTIK header, breakaway, order code 77314-1AALF, 10 positions (9 loaded), dual row, 0.100" (2.54 mm) pitch, 3 A, gold GXT mating contacts, through-hole, solder termination.
| Parameter | Value |
|---|---|
| Series | BERGSTIK® |
| Type | Male Pin |
| Mounting | Through Hole |
| Connector type | Header, Breakaway |
| Fastening type | Push-Pull |
| Current rating | 3A |
| Operating temperature | -65°C~130°C |
| Contact material | Phosphor Bronze |
| Insulation color | Black |
| Insulation height | 0.100\" (2.54mm) |
| Insulation material | Thermoplastic |
| Material flammability rating | UL94 V-0 |
| Parameter | Value |
|---|---|
| Style | Board to Board or Cable |
| Package | Bag |
| Shrouding | Unshrouded |
| Termination | Solder |
| Contact shape | Square |
| Rows | 2 |
| Pitch | 0.100\" (2.54mm) |
| Positions | 10 |
| Row spacing - mating | 0.100\" (2.54mm) |
| Contact finish - post | Tin |
| Contact length - post | 0.093\" (2.35mm) |
| Overall contact length | 0.425\" (10.80mm) |
| Contact finish - mating | Gold, GXT™ |
| Contact length - mating | 0.232\" (5.90mm) |
| Contact finish thickness - post | 78.7µin (2.00µm) |
| Contact finish thickness - mating | 30.0µin (0.76µm) |
The 10-position 77314-1AALF is the 9-loaded member of the BERGSTIK breakaway line — the unloaded position allows the user to snap the header to a custom length, matching the exact circuit count needed. The pitch, plating, and current rating are consistent across the series.
No end-of-life notice is recorded. Sourced per RFQ against BOM quantities.
Order 77314-1AALF through the BERGSTIK line. Availability and pricing are confirmed per RFQ against your BOM quantity.
No official cross-reference is recorded for the 77314-1AALF. The BERGSTIK series includes breakaway headers in other position counts and plating options; the pitch and footprint are shared across the series.
The 77314-1AALF is listed as Board to Board or Cable style.
RoHS and REACH compliance documentation is available from the manufacturer.
