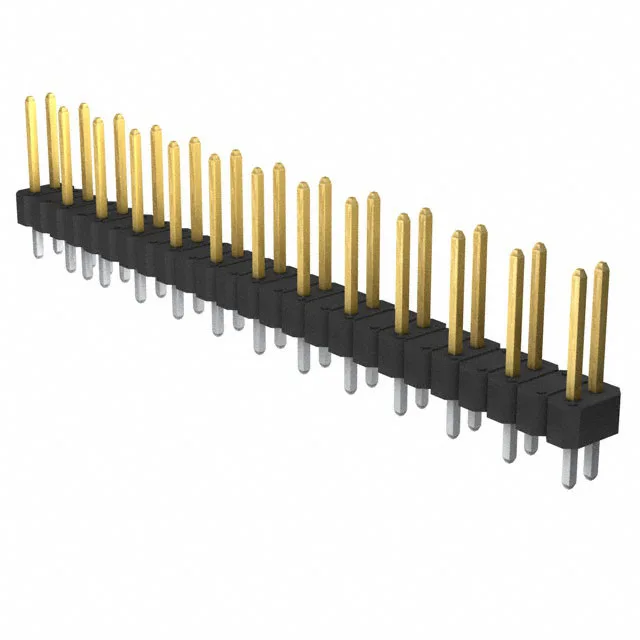

Amphenol ICC (FCI) BERGSTIK header, order code 77314-1ADLF, 50 positions, dual row, 0.100" (2.54 mm) pitch, 3 A, gold GXT mating contacts, through-hole, unshrouded breakaway, solder termination.
| Parameter | Value |
|---|---|
| Series | BERGSTIK® |
| Gender | Male Pin |
| Mounting type | Through Hole |
| Connector type | Header, Breakaway |
| Fastening type | Push-Pull |
| Current rating | 3A |
| Operating temperature | -65°C~130°C |
| Contact material | Phosphor Bronze |
| Insulation color | Black |
| Insulation height | 0.100\" (2.54mm) |
| Insulation material | Thermoplastic |
| Material flammability rating | UL94 V-0 |
| Style | Board to Board or Cable |
| Package | Bag |
| Shrouding | Unshrouded |
| Termination | Solder |
| Contact shape | Square |
| Rows | 2 |
| Pitch | 0.100\" (2.54mm) |
| Positions | 50 |
| Row spacing - mating | 0.100\" (2.54mm) |
| Contact finish - post | Tin |
| Contact length - post | 0.120\" (3.05mm) |
| Overall contact length | 0.526\" (13.35mm) |
| Contact finish - mating | Gold, GXT™ |
| Contact length - mating | 0.305\" (7.75mm) |
| Contact finish thickness - post | 78.7µin (2.00µm) |
| Contact finish thickness - mating | 30.0µin (0.76µm) |
The 77314-1ADLF is a 50-position member of the BERGSTIK breakaway header line from Amphenol ICC (FCI), with 26 positions loaded in a dual-row, 0.100" pitch layout.
The 77314-1ADLF carries 26 loaded positions out of a 50-position dual-row insulator.
Amphenol ICC (FCI) provides RoHS and REACH compliance documentation for the 77314-1ADLF.
