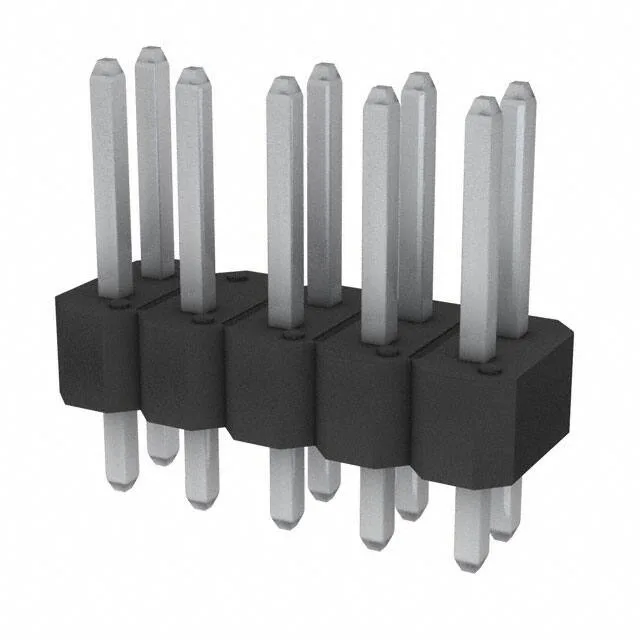

Amphenol ICC (FCI) BERGSTIK® header, order code 77314-450LF, 10 positions (9 loaded), dual row, 0.100" (2.54mm) pitch, 3 A, tin-plated mating contacts, through hole, solder termination.
| Parameter | Value |
|---|---|
| Series | BERGSTIK® |
| Gender | Male Pin |
| Mounting type | Through Hole |
| Connector type | Header, Breakaway |
| Fastening type | Push-Pull |
| Current rating | 3A |
| Operating temperature | -65°C~130°C |
| Contact material | Phosphor Bronze |
| Insulation color | Black |
| Insulation height | 0.100\" (2.54mm) |
| Insulation material | Thermoplastic |
| Material flammability rating | UL94 V-0 |
| Style | Board to Board or Cable |
| Package | Bag |
| Shrouding | Unshrouded |
| Termination | Solder |
| Contact shape | Square |
| Rows | 2 |
| Pitch | 0.100\" (2.54mm) |
| Positions | 10 |
| Row spacing - mating | 0.100\" (2.54mm) |
| Contact finish - post | Tin |
| Contact length - post | 0.100\" (2.54mm) |
| Overall contact length | 0.425\" (10.80mm) |
| Contact finish - mating | Tin |
| Contact length - mating | 0.225\" (5.72mm) |
| Contact finish thickness - post | 78.7µin (2.00µm) |
| Contact finish thickness - mating | 78.7µin (2.00µm) |
The 77314-450LF: Through-hole solder termination, UL94 V-0 thermoplastic housing.
The 77314-450LF carries 10 positions in a dual-row configuration, but only 9 positions are loaded with pins. The unloaded position allows the user to omit a circuit without modifying the board footprint.
