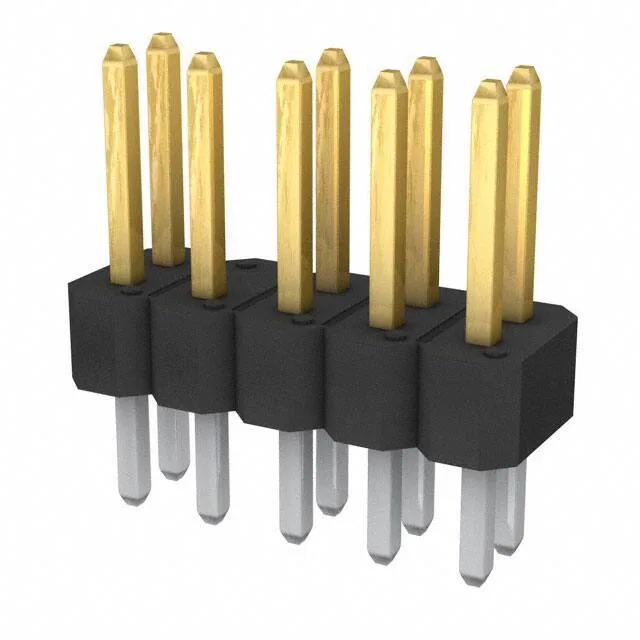

Amphenol ICC (FCI) BERGSTIK header, order code 77314-855LF, 10 positions (9 loaded), dual row, 2.54 mm pitch, 3 A, gold GXT mating contacts, through-hole, solder termination.
| Parameter | Value |
|---|---|
| Series | BERGSTIK® |
| Gender | Male Pin |
| Mounting type | Through Hole |
| Connector type | Header, Breakaway |
| Fastening type | Push-Pull |
| Current rating | 3A |
| Operating temperature | -65°C~130°C |
| Contact material | Phosphor Bronze |
| Insulation color | Black |
| Insulation height | 0.100\" (2.54mm) |
| Insulation material | Thermoplastic |
| Material flammability rating | UL94 V-0 |
| Style | Board to Board or Cable |
| Package | Bag |
| Shrouding | Unshrouded |
| Termination | Solder |
| Contact shape | Square |
| Rows | 2 |
| Pitch | 0.100\" (2.54mm) |
| Positions | 10 |
| Row spacing - mating | 0.100\" (2.54mm) |
| Contact finish - post | Tin |
| Contact length - post | 0.135\" (3.43mm) |
| Overall contact length | 0.465\" (11.81mm) |
| Contact finish - mating | Gold, GXT™ |
| Contact length - mating | 0.230\" (5.84mm) |
| Contact finish thickness - post | 78.7µin (2.00µm) |
| Contact finish thickness - mating | 15.0µin (0.38µm) |
The 77314-855LF is the 10-position (9 loaded) member of Amphenol ICC's BERGSTIK breakaway header line, unshrouded with push-pull fastening.
The 10-position header carries 9 loaded circuits — position 10 is a vacant through-hole position that can be populated with a separate pin or left empty for keying or routing clearance.
Submit a request for current lead time and volume pricing.
The listed style is Board to Board or Cable.
RoHS compliance documentation is available from the manufacturer.
