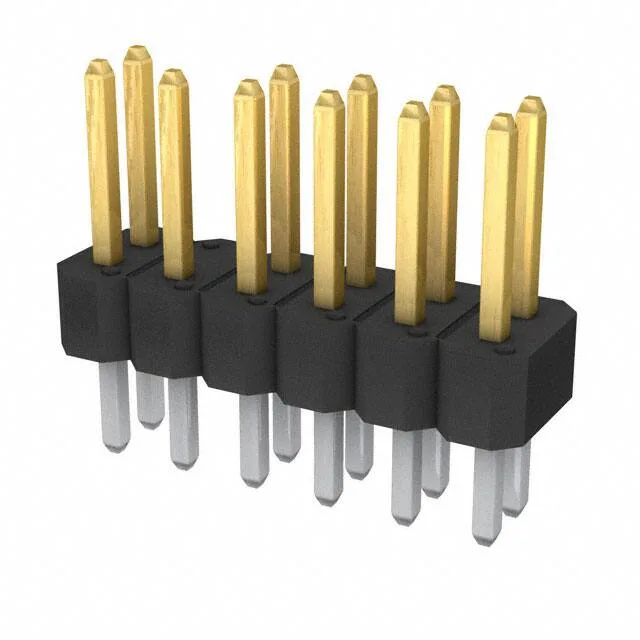

77314-856LF Amphenol ICC BERGSTIK Header, 11 Pos, 2.54mm

MPN77314-856LF
Active

Amphenol ICC (FCI) BERGSTIK® header, breakaway, order code 77314-856LF, 11 positions loaded, dual row, 0.100" (2.54 mm) pitch, 3 A, gold GXT™ mating contacts, through-hole, solder termination.

$0.5695Ref. price · indicative, final on quote
77314-856LF datasheet
StockContact for availability
Lead timeIn Stock wk
MOQ1 pcs
  • New & original stockTraceable channels only — no mixed lots, no re-taped reels.
  • Factory packaging where availableSealed reels, trays and bags; cut quantities always stated on the quote.
  • Photo-verified countsEvery line counted and photographed before the box closes.
  • PayPal buyer protectionPay by T/T, PayPal or Payoneer — card payments covered end to end.
How we verify every order →

Specifications

77314-856LF Technical Specifications
ParameterValue
SeriesBERGSTIK®
GenderMale Pin
Mounting typeThrough Hole
Connector typeHeader, Breakaway
Fastening typePush-Pull
Current rating3A
Operating temperature-65°C~130°C
Contact materialPhosphor Bronze
Insulation colorBlack
Insulation height0.100\" (2.54mm)
Insulation materialThermoplastic
Material flammability ratingUL94 V-0
StyleBoard to Board or Cable
PackageBulk
ShroudingUnshrouded
TerminationSolder
Contact shapeSquare
Rows2
Pitch0.100\" (2.54mm)
Positions12
Row spacing - mating0.100\" (2.54mm)
Contact finish - postTin
Contact length - post0.135\" (3.43mm)
Overall contact length0.465\" (11.81mm)
Contact finish - matingGold, GXT™
Contact length - mating0.230\" (5.84mm)
Contact finish thickness - post78.7µin (2.00µm)
Contact finish thickness - mating15.0µin (0.38µm)

Product details

Board-to-board or cable header, 11 loaded positions

The 77314-856LF is the 11-position-loaded member of the BERGSTIK® breakaway header line from Amphenol ICC (FCI). It carries gold GXT™ mating contacts rated 3 A and mounts through-hole with solder termination; the unshrouded push-pull fastening suits board-to-board or cable connections.

Position count within the dual-row 2.54 mm pitch series

The 11 loaded positions on the 77314-856LF sit within the 12-position dual-row BERGSTIK® footprint — one position is left unpopulated.

Frequently asked questions

What compliance documentation is available for the 77314-856LF?

RoHS and REACH compliance documentation is provided by Amphenol ICC (FCI) per standard industry practice.

What is the closest pin-compatible alternative in the BERGSTIK® series?

A fully populated 12-position BERGSTIK® header (e.g., base product number 77314) shares the same pitch, row spacing, and footprint. The 77314-856LF leaves one position unloaded; a 12-position loaded part populates all positions.
