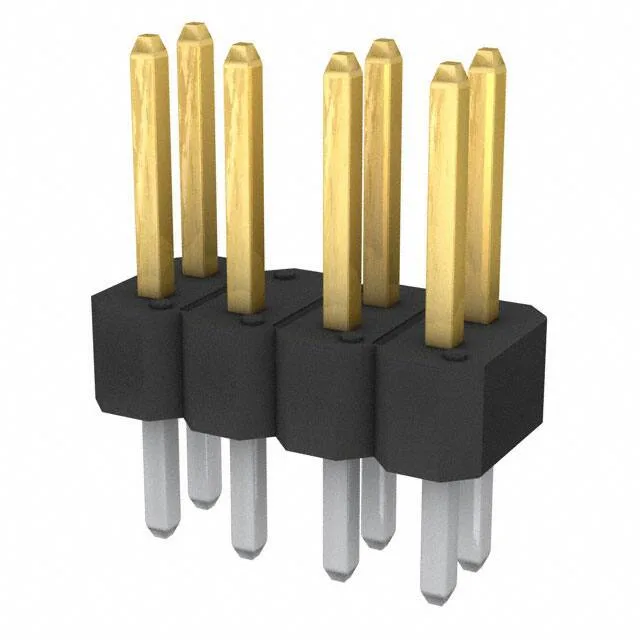

Amphenol ICC (FCI) BERGSTIK® series, 77314-864LF, unshrouded male pin header, 8 positions (7 loaded), 2 rows, 0.100" (2.54mm) pitch, through-hole solder termination, gold GXT mating finish, UL94 V-0.
| Parameter | Value |
|---|---|
| Series | BERGSTIK® |
| Type | Male Pin |
| Mounting | Through Hole |
| Connector type | Header, Breakaway |
| Fastening type | Push-Pull |
| Current rating | 3A |
| Operating temperature | -65°C~130°C |
| Contact material | Phosphor Bronze |
| Insulation color | Black |
| Insulation height | 0.100\" (2.54mm) |
| Insulation material | Thermoplastic |
| Material flammability rating | UL94 V-0 |
| Parameter | Value |
|---|---|
| Style | Board to Board or Cable |
| Package | Bag |
| Shrouding | Unshrouded |
| Termination | Solder |
| Contact shape | Square |
| Rows | 2 |
| Pitch | 0.100\" (2.54mm) |
| Positions | 8 |
| Row spacing - mating | 0.100\" (2.54mm) |
| Contact finish - post | Tin |
| Contact length - post | 0.135\" (3.43mm) |
| Overall contact length | 0.465\" (11.81mm) |
| Contact finish - mating | Gold, GXT™ |
| Contact length - mating | 0.230\" (5.84mm) |
| Contact finish thickness - post | 78.7µin (2.00µm) |
| Contact finish thickness - mating | 15.0µin (0.38µm) |
The 3A ceiling is conservative for the phosphor bronze contact material and the 0.100" pitch — in a typical signal harness the per-circuit load stays well below this limit, but the rating sets the derating baseline if the ambient climbs toward the upper end of the range.
Sourced through independent distribution against an RFQ.
0.100" (2.54mm) pitch, 8 positions total with 7 loaded in a 2-row layout.
