Amphenol ICC (FCI) BERGSTIK® header, breakaway, order code 77314-8AFLF, 28 positions (20 loaded), dual row, 0.100" (2.54 mm) pitch, 3 A, gold GXT™ mating contacts, through-hole, solder termination.
| Parameter | Value |
|---|---|
| Series | BERGSTIK® |
| Type | Male Pin |
| Mounting | Through Hole |
| Connector type | Header, Breakaway |
| Fastening type | Push-Pull |
| Current rating | 3A |
| Operating temperature | -65°C~130°C |
| Contact material | Phosphor Bronze |
| Insulation color | Black |
| Insulation height | 0.100\" (2.54mm) |
| Insulation material | Thermoplastic |
| Material flammability rating | UL94 V-0 |
| Parameter | Value |
|---|---|
| Style | Board to Board or Cable |
| Package | Bag |
| Shrouding | Unshrouded |
| Termination | Solder |
| Contact shape | Square |
| Rows | 2 |
| Pitch | 0.100\" (2.54mm) |
| Positions | 28 |
| Row spacing - mating | 0.100\" (2.54mm) |
| Contact finish - post | Tin |
| Contact length - post | 0.095\" (2.41mm) |
| Overall contact length | 0.425\" (10.80mm) |
| Contact finish - mating | Gold, GXT™ |
| Contact length - mating | 0.230\" (5.84mm) |
| Contact finish thickness - post | 78.7µin (2.00µm) |
| Contact finish thickness - mating | 15.0µin (0.38µm) |

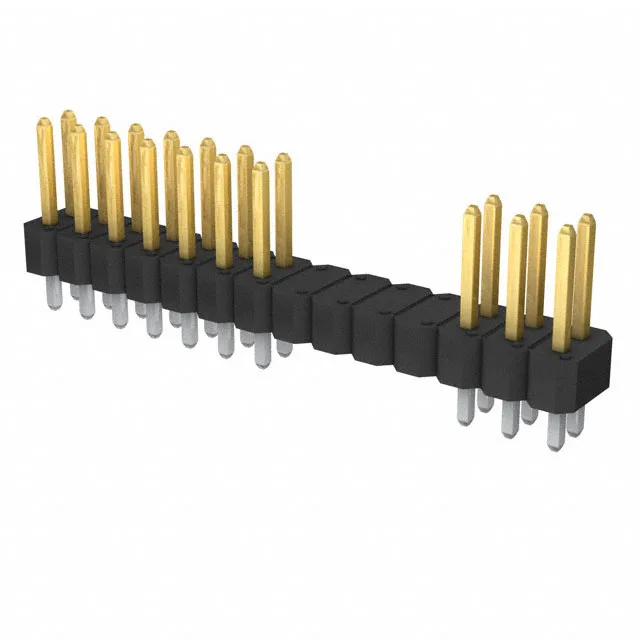

The 77314-8AFLF: The header carries 28 pin positions but only 20 are loaded — the unloaded positions allow the user to snap the pin row to the exact circuit count needed on site, matching the board layout without ordering a custom part.
RoHS and REACH compliance documentation is available from the manufacturer; check the product drawing or contact Amphenol ICC (FCI) directly for the latest certificates.
