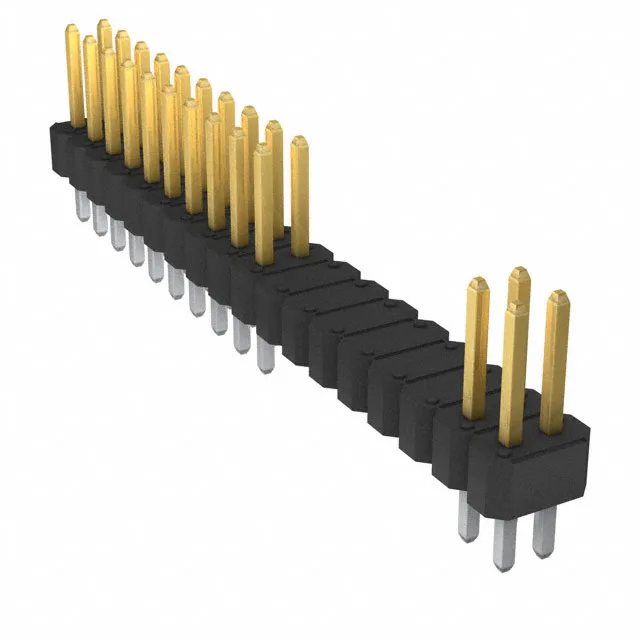

Amphenol ICC FCI BERGSTIK® header, breakaway, order code 77314-8AGLF, 36 positions (24 loaded), dual row, 0.100" (2.54 mm) pitch, 3 A, gold GXT™ mating contacts, through-hole, solder termination.
Amphenol ICC FCI BERGSTIK® header, breakaway, order code 77314-8AGLF, 36 positions (24 loaded), dual row, 0.100" (2.54 mm) pitch, 3 A, gold GXT™ mating contacts, through-hole, solder termination.
$1.1704Ref. price · indicative, final on quote
StockContact for availability
Lead timeIn Stock wk
MOQ1 pcs
- New & original stockTraceable channels only — no mixed lots, no re-taped reels.
- Factory packaging where availableSealed reels, trays and bags; cut quantities always stated on the quote.
- Photo-verified countsEvery line counted and photographed before the box closes.
- PayPal buyer protectionPay by T/T, PayPal or Payoneer — card payments covered end to end.
Specifications
| Parameter | Value |
|---|---|
| Series | BERGSTIK® |
| Gender | Male Pin |
| Mounting type | Through Hole |
| Connector type | Header, Breakaway |
| Fastening type | Push-Pull |
| Current rating | 3A |
| Operating temperature | -65°C~130°C |
| Contact material | Phosphor Bronze |
| Insulation color | Black |
| Insulation height | 0.100\" (2.54mm) |
| Insulation material | Thermoplastic |
| Material flammability rating | UL94 V-0 |
| Style | Board to Board or Cable |
| Package | Bag |
| Shrouding | Unshrouded |
| Termination | Solder |
| Contact shape | Square |
| Rows | 2 |
| Pitch | 0.100\" (2.54mm) |
| Positions | 36 |
| Row spacing - mating | 0.100\" (2.54mm) |
| Contact finish - post | Tin |
| Contact length - post | 0.120\" (3.05mm) |
| Overall contact length | 0.445\" (11.30mm) |
| Contact finish - mating | Gold, GXT™ |
| Contact length - mating | 0.225\" (5.72mm) |
| Contact finish thickness - post | 78.7µin (2.00µm) |
| Contact finish thickness - mating | 15.0µin (0.38µm) |
Product details
Frequently asked questions
What is the closest pin-compatible alternative to 77314-8AGLF in this component family?
No pin-compatible alternative is listed on record for this BERGSTIK® header. The selective-population scheme (36 positions, 24 loaded) is specific to this order code.
What is 77314-8AGLF's listed style and series?
The style is Board to Board or Cable, and the series is BERGSTIK®.
What compliance documentation does this brand provide for 77314-8AGLF?
No additional compliance documentation (RoHS, REACH, IEC) is on record for this order code.
