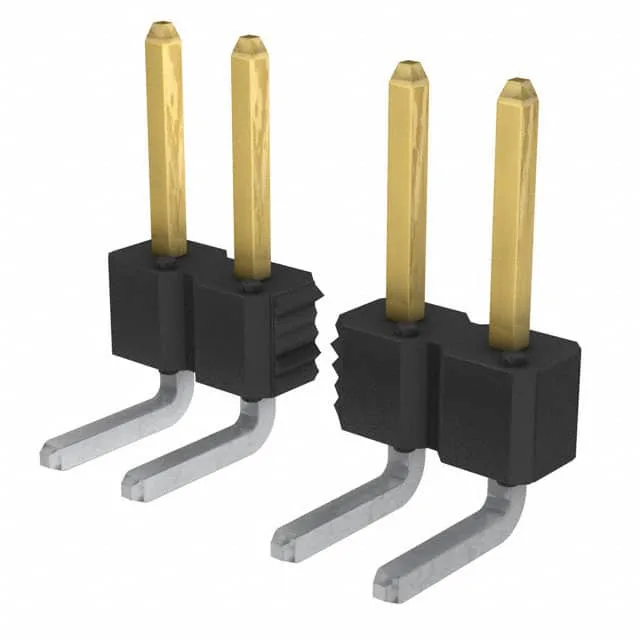

Amphenol ICC (FCI) BERGSTIK® unshrouded header, 10 positions, 0.100" (2.54mm) pitch, through hole right angle, male pin, gold or GXT™ mating finish, 3A per contact, UL94 V-0, -65°C to 125°C.
| Parameter | Value |
|---|---|
| Series | BERGSTIK® |
| Type | Male Pin |
| Mounting | Through Hole, Right Angle |
| Connector type | Header, Breakaway |
| Fastening type | Push-Pull |
| Current rating | 3A per Contact |
| Operating temperature | -65°C~125°C |
| Contact material | Phosphor Bronze |
| Insulation color | Black |
| Insulation height | 0.094\" (2.40mm) |
| Insulation material | Thermoplastic |
| Material flammability rating | UL94 V-0 |
| Parameter | Value |
|---|---|
| Style | Board to Board |
| Package | Bag |
| Shrouding | Unshrouded |
| Termination | Solder |
| Contact shape | Square |
| Rows | 1 |
| Pitch | 0.100\" (2.54mm) |
| Positions | 10 |
| Contact finish - post | Tin |
| Contact length - post | 0.101\" (2.57mm) |
| Contact finish - mating | Gold or Gold, GXT™ |
| Contact length - mating | 0.225\" (5.72mm) |
| Contact finish thickness - post | 78.7µin (2.00µm) |
| Contact finish thickness - mating | 30.0µin (0.76µm) |
Classified as a Board-to-Board style connector, this unshrouded header is designed to mate with standard 2.54 mm pitch female receptacles (socket headers or IDC connectors).
Within the same BERGSTIK® series, the 77315-118-06LF (6 positions) and 77315-107-36LF (36 positions) share identical pitch, plating, current rating, and right-angle through-hole mounting.
