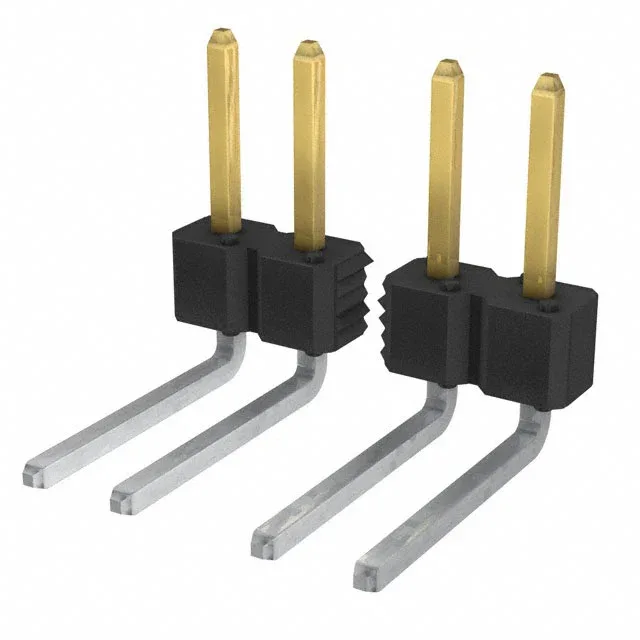

Amphenol ICC (FCI) BERGSTIK®, 77315-103-25LF, header breakaway, 25 positions, single row, 0.100" (2.54mm) pitch, right-angle through-hole, solder termination, gold or GXT™ mating finish, 3 A per contact, -65°C~125°C, UL94 V-0.
| Parameter | Value |
|---|---|
| Series | BERGSTIK® |
| Type | Male Pin |
| Mounting | Through Hole, Right Angle |
| Connector type | Header, Breakaway |
| Fastening type | Push-Pull |
| Current rating | 3A per Contact |
| Operating temperature | -65°C~125°C |
| Contact material | Phosphor Bronze |
| Insulation color | Black |
| Insulation height | 0.094\" (2.40mm) |
| Insulation material | Thermoplastic |
| Material flammability rating | UL94 V-0 |
| Parameter | Value |
|---|---|
| Style | Board to Board |
| Package | Bag |
| Shrouding | Unshrouded |
| Termination | Solder |
| Contact shape | Square |
| Rows | 1 |
| Pitch | 0.100\" (2.54mm) |
| Positions | 25 |
| Contact finish - post | Tin |
| Contact length - post | 0.301\" (7.65mm) |
| Contact finish - mating | Gold or Gold, GXT™ |
| Contact length - mating | 0.225\" (5.72mm) |
| Contact finish thickness - post | 78.7µin (2.00µm) |
| Contact finish thickness - mating | 30.0µin (0.76µm) |
Mounted right-angle through the board, the pins sit parallel to the PCB plane — useful when you need to route the cable along the board edge or keep the z-height low in a tight enclosure.
The 25-position single row keeps the per-contact resistance low — the phosphor bronze contact material and gold mating interface hold contact resistance under 20 mOhm typical at rated current.
Yes. The connector type is listed as Header, Breakaway — the pins can be snapped to custom lengths, so you can depopulate positions as needed for your board layout.
Common mating halves include Amphenol ICC's DILB or DILM series sockets, or generic 25-pin ribbon-cable connectors. The unshrouded header allows direct access for hand-mating or automated assembly.
