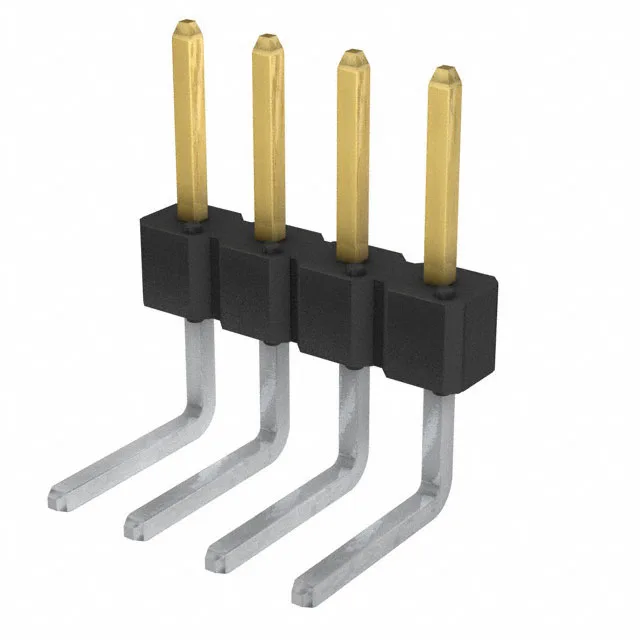

Amphenol ICC (FCI) BERGSTIK header, order code 77315-107-04LF, 4 positions, single row, 0.100" (2.54mm) pitch, 3A per contact, gold or GXT™ mating contacts, through-hole right-angle, solder termination.
Amphenol ICC (FCI) 77315-107-04LF BERGSTIK Header, 4-Pos
MPN77315-107-04LF
Active
Amphenol ICC (FCI) BERGSTIK header, order code 77315-107-04LF, 4 positions, single row, 0.100" (2.54mm) pitch, 3A per contact, gold or GXT™ mating contacts, through-hole right-angle, solder termination.
$0.3073Ref. price · indicative, final on quote
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Aug 2026
Specifications
| Parameter | Value |
|---|---|
| Series | BERGSTIK® |
| Type | Male Pin |
| Mounting | Through Hole, Right Angle |
| Connector type | Header, Breakaway |
| Fastening type | Push-Pull |
| Current rating | 3A per Contact |
| Operating temperature | -65°C~125°C |
| Contact material | Phosphor Bronze |
| Insulation color | Black |
| Insulation height | 0.094\" (2.40mm) |
| Insulation material | Thermoplastic |
| Material flammability rating | UL94 V-0 |
All specifications
| Parameter | Value |
|---|---|
| Style | Board to Board |
| Package | Bulk |
| Shrouding | Unshrouded |
| Termination | Solder |
| Contact shape | Square |
| Rows | 1 |
| Pitch | 0.100\" (2.54mm) |
| Positions | 4 |
| Contact finish - post | Tin |
| Contact length - post | 0.201\" (5.11mm) |
| Contact finish - mating | Gold or Gold, GXT™ |
| Contact length - mating | 0.225\" (5.72mm) |
| Contact finish thickness - post | 78.7µin (2.00µm) |
| Contact finish thickness - mating | 30.0µin (0.76µm) |
Product details
Frequently asked questions
What is the closest pin-compatible alternative to 77315-107-04LF in this Pin Headers, Sockets & Housings family?
No pin-compatible alternative is listed in the BERGSTIK series for this 4-position, 0.100" pitch, right-angle through-hole configuration. The base product number is 77315.
What compliance documentation does Amphenol ICC (FCI) provide for 77315-107-04LF?
RoHS and REACH compliance documentation is available from Amphenol ICC (FCI) on request.
