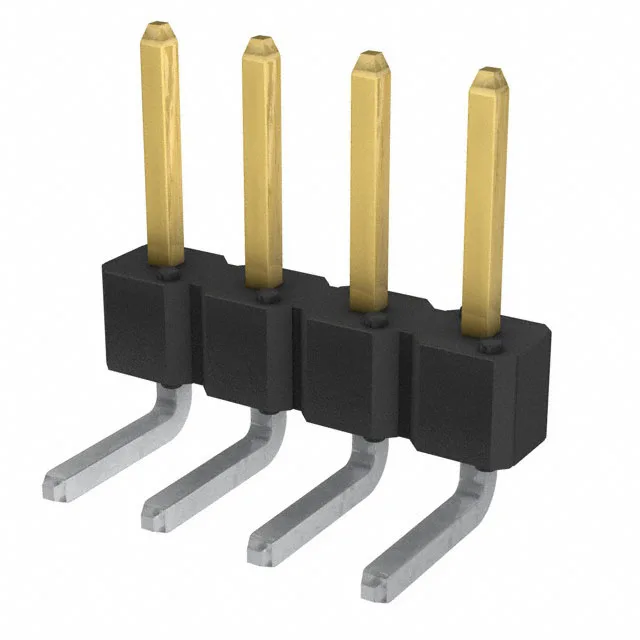

Amphenol ICC (FCI) BERGSTIK® header, order code 77315-113-04, 4 positions, single row, 0.100" (2.54 mm) pitch, unshrouded, male pin, gold or GXT™ mating finish, through-hole right-angle, solder termination.
| Parameter | Value |
|---|---|
| Series | BERGSTIK® |
| Type | Male Pin |
| Mounting | Through Hole, Right Angle |
| Connector type | Header, Breakaway |
| Fastening type | Push-Pull |
| Contact material | Phosphor Bronze |
| Insulation color | Black |
| Insulation height | 0.094\" (2.40mm) |
| Insulation material | Thermoplastic |
| Material flammability rating | UL94 V-0 |
| Style | Board to Board |
| Package | Bulk |
| Parameter | Value |
|---|---|
| Shrouding | Unshrouded |
| Termination | Solder |
| Contact shape | Square |
| Rows | 1 |
| Pitch | 0.100\" (2.54mm) |
| Positions | 4 |
| Contact finish - post | Tin-Lead |
| Contact length - post | 0.136\" (3.46mm) |
| Contact finish - mating | Gold or Gold, GXT™ |
| Contact length - mating | 0.225\" (5.72mm) |
| Contact finish thickness - post | 150.0µin (3.81µm) |
| Contact finish thickness - mating | 30.0µin (0.76µm) |
The 77315-113-04 is the 4-position member of the Amphenol ICC (FCI) BERGSTIK® breakaway header line, style Board to Board. Single-row unshrouded design with 0.100" pitch, gold or GXT™ mating finish, and through-hole right-angle mounting.
Confirm with Amphenol ICC (FCI) directly.
