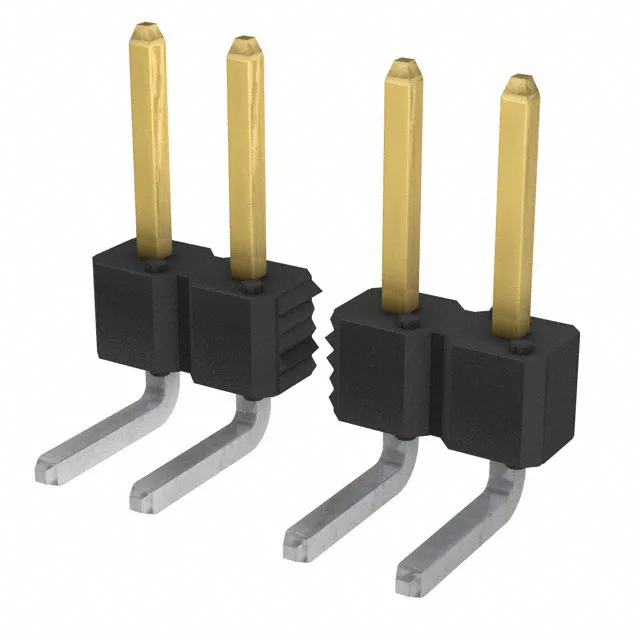

Amphenol ICC (FCI) BERGSTIK header, breakaway, order code 77315-113-05, 5 positions, single row, 0.100" (2.54 mm) pitch, unshrouded, through-hole right-angle, solder termination, gold or GXT mating finish.
Amphenol ICC (FCI) 77315-113-05 BERGSTIK Header, 5 Pos
MPN77315-113-05
Obsolete
Amphenol ICC (FCI) BERGSTIK header, breakaway, order code 77315-113-05, 5 positions, single row, 0.100" (2.54 mm) pitch, unshrouded, through-hole right-angle, solder termination, gold or GXT mating finish.
$0.9600Ref. price · indicative, final on quote
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent supplier — new & surplus connector stock· Listing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Series | BERGSTIK® |
| Type | Male Pin |
| Mounting | Through Hole, Right Angle |
| Connector type | Header, Breakaway |
| Fastening type | Push-Pull |
| Contact material | Phosphor Bronze |
| Insulation color | Black |
| Insulation height | 0.094\" (2.40mm) |
| Insulation material | Thermoplastic |
| Material flammability rating | UL94 V-0 |
| Style | Board to Board |
| Package | Bulk |
All specifications
| Parameter | Value |
|---|---|
| Shrouding | Unshrouded |
| Termination | Solder |
| Contact shape | Square |
| Rows | 1 |
| Pitch | 0.100\" (2.54mm) |
| Positions | 5 |
| Contact finish - post | Tin-Lead |
| Contact length - post | 0.136\" (3.46mm) |
| Contact finish - mating | Gold or Gold, GXT™ |
| Contact length - mating | 0.225\" (5.72mm) |
| Contact finish thickness - post | 150.0µin (3.81µm) |
| Contact finish thickness - mating | 30.0µin (0.76µm) |
Product details
Frequently asked questions
How can I source the 77315-113-05?
The 77315-113-05 is available through independent surplus channels.
