The 77315-118-04LF: For a lower-cost alternative with tin-on-tin mating, the sibling 77315-422-03LF carries a tin mating finish at the same thickness, but at the cost of reduced mating cycle endurance.

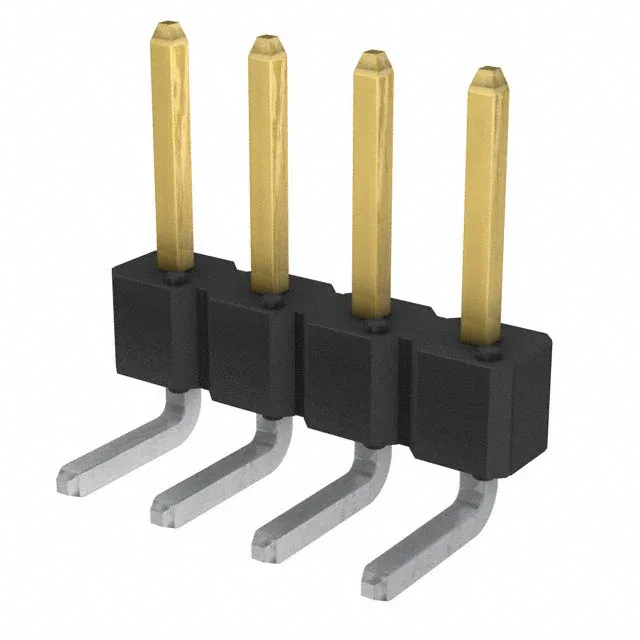

77315-118-04LF BERGSTIK® Header, 4 Pos, 0.100" Pitch
MPN77315-118-04LF
Active
Amphenol ICC (FCI) BERGSTIK® unshrouded header, 4 positions, 0.100" (2.54mm) pitch, through-hole right-angle, male pin, gold or GXT™ mating finish, 3 A per contact, UL94 V-0, Active.
$0.7000Ref. price · indicative, final on quote
RoHSRoHS Compliant
SeriesBERGSTIK®
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Aug 2026
Specifications
| Parameter | Value |
|---|---|
| Series | BERGSTIK® |
| Type | Male Pin |
| Mounting | Through Hole, Right Angle |
| Connector type | Header, Breakaway |
| Fastening type | Push-Pull |
| Current rating | 3A per Contact |
| Operating temperature | -65°C~125°C |
| Contact material | Phosphor Bronze |
| Insulation color | Black |
| Insulation height | 0.094\" (2.40mm) |
| Insulation material | Thermoplastic |
| Material flammability rating | UL94 V-0 |
All specifications
| Parameter | Value |
|---|---|
| Style | Board to Board |
| Package | Bulk |
| Shrouding | Unshrouded |
| Termination | Solder |
| Contact shape | Square |
| Rows | 1 |
| Pitch | 0.100\" (2.54mm) |
| Positions | 4 |
| Contact finish - post | Tin |
| Contact length - post | 0.120\" (3.05mm) |
| Contact finish - mating | Gold or Gold, GXT™ |
| Contact length - mating | 0.230\" (5.84mm) |
| Contact finish thickness - post | 78.7µin (2.00µm) |
| Contact finish thickness - mating | 30.0µin (0.76µm) |
Product details
Frequently asked questions
Where can I buy 77315-118-04LF and check stock?
Sourced through independent distribution against an RFQ.
Is 77315-118-04LF RoHS compliant?
Yes, RoHS compliant per the manufacturer listing.
What is the pitch and pin count of 77315-118-04LF?
0.100" (2.54mm) pitch, 4 positions, single row, all positions loaded.
