77315-124-03LF BERGSTIK 3-pos 0.100" Header
MPN77315-124-03LF
Active

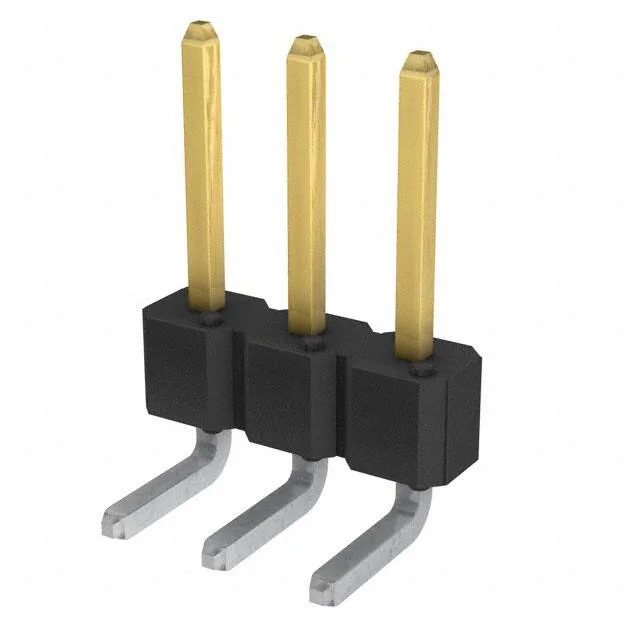

Amphenol FCI BERGSTIK 77315-124-03LF, 3-position, 0.100" (2.54 mm) pitch, right-angle through-hole, board-to-board breakaway header. Male pin, phosphor bronze contacts, gold flash/GXT on mating side, tin on post, 3 A per contact, -65°C to 125°C operating range.
$0.4600Ref. price · indicative, final on quote
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Series | BERGSTIK® |
| Type | Male Pin |
| Mounting | Through Hole, Right Angle |
| Connector type | Header, Breakaway |
| Fastening type | Push-Pull |
| Current rating | 3A per Contact |
| Operating temperature | -65°C~125°C |
| Contact material | Phosphor Bronze |
| Insulation color | Black |
| Insulation height | 0.094\" (2.40mm) |
| Insulation material | Thermoplastic |
| Material flammability rating | UL94 V-0 |
All specifications
| Parameter | Value |
|---|---|
| Style | Board to Board |
| Package | Bulk |
| Shrouding | Unshrouded |
| Termination | Solder |
| Contact shape | Square |
| Rows | 1 |
| Pitch | 0.100\" (2.54mm) |
| Positions | 3 |
| Contact finish - post | Tin |
| Contact length - post | 0.112\" (2.84mm) |
| Contact finish - mating | Gold or Gold, GXT™ |
| Contact length - mating | 0.266\" (6.75mm) |
| Contact finish thickness - post | 78.7µin (2.00µm) |
| Contact finish thickness - mating | 30.0µin (0.76µm) |
Frequently asked questions
Where can I buy 77315-124-03LF and what is the lead time?
The 77315-124-03LF is sourced through independent distribution, quoted to order against the BOM quantity. Availability and current pricing are confirmed at quote time — no live stock count is published.
