Right-angle breakaway header, 36 positions
The 77315-134-36LF is the 36-position member of Amphenol ICC's BERGSTIK® unshrouded breakaway header line, configured for through-hole right-angle mounting.

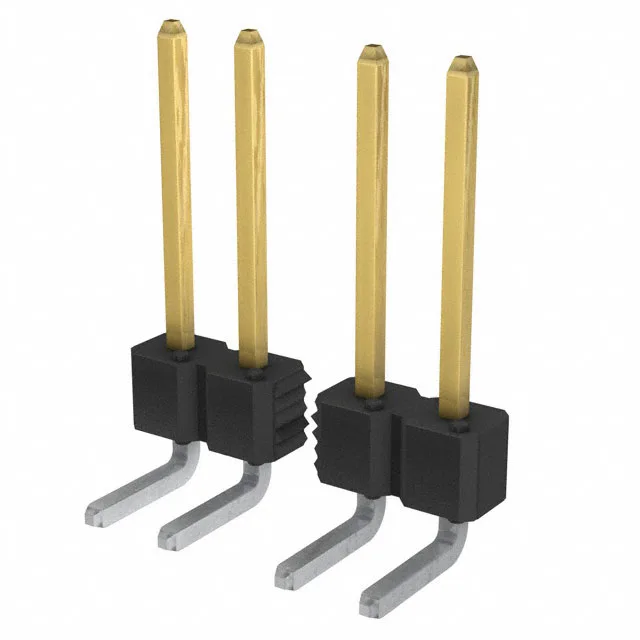

Amphenol BERGSTIK 77315-134-36LF Header, 36 Pos, 2.54mm
MPN77315-134-36LF
Active
Amphenol ICC (FCI) BERGSTIK® header, order code 77315-134-36LF, 36 positions, single row, 0.100" (2.54mm) pitch, 3A per contact, gold or GXT™ mating finish, through-hole right-angle, solder termination.
$2.3915Ref. price · indicative, final on quote
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Aug 2026
Specifications
| Parameter | Value |
|---|---|
| Series | BERGSTIK® |
| Type | Male Pin |
| Mounting | Through Hole, Right Angle |
| Connector type | Header, Breakaway |
| Fastening type | Push-Pull |
| Current rating | 3A per Contact |
| Operating temperature | -65°C~125°C |
| Contact material | Phosphor Bronze |
| Insulation color | Black |
| Insulation height | 0.094\" (2.40mm) |
| Insulation material | Thermoplastic |
| Material flammability rating | UL94 V-0 |
All specifications
| Parameter | Value |
|---|---|
| Style | Board to Board |
| Package | Bag |
| Shrouding | Unshrouded |
| Termination | Solder |
| Contact shape | Square |
| Rows | 1 |
| Pitch | 0.100\" (2.54mm) |
| Positions | 36 |
| Contact finish - post | Tin |
| Contact length - post | 0.128\" (3.25mm) |
| Contact finish - mating | Gold or Gold, GXT™ |
| Contact length - mating | 0.394\" (10.00mm) |
| Contact finish thickness - post | 78.7µin (2.00µm) |
| Contact finish thickness - mating | 30.0µin (0.76µm) |
