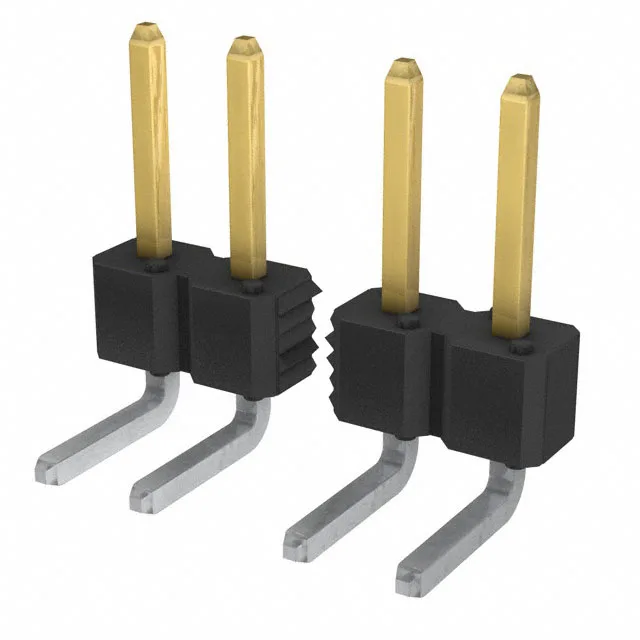

Amphenol ICC (FCI) BERGSTIK series, unshrouded breakaway header, 15 positions, 2.54mm pitch, right-angle through-hole, male pin, 3A per contact, gold-plated mating surface, UL94 V-0
| Parameter | Value |
|---|---|
| Series | BERGSTIK® |
| Type | Male Pin |
| Mounting | Through Hole, Right Angle |
| Connector type | Header, Breakaway |
| Fastening type | Push-Pull |
| Current rating | 3A per Contact |
| Operating temperature | -65°C ~ 125°C |
| Contact material | Phosphor Bronze |
| Insulation color | Black |
| Insulation height | 0.094\" (2.40mm) |
| Insulation material | Thermoplastic |
| Material flammability rating | UL94 V-0 |
| Parameter | Value |
|---|---|
| Style | Board to Board |
| Package | Bulk |
| Shrouding | Unshrouded |
| Termination | Solder |
| Contact shape | Square |
| Rows | 1 |
| Pitch | 0.100\" (2.54mm) |
| Positions | 15 |
| Contact finish - post | Tin |
| Contact length - post | 0.136\" (3.46mm) |
| Contact finish - mating | Gold or Gold, GXT™ |
| Contact length - mating | 0.225\" (5.72mm) |
| Contact finish thickness - post | 78.7µin (2.00µm) |
| Contact finish thickness - mating | 15.0µin (0.38µm) |
The 0.225-inch mating pin length gives a solid wipe depth into a standard socket.
The 2.54mm pitch is the standard 0.100-inch grid — footprint matches legacy through-hole layouts and common ribbon-cable receptacles. 15 positions loaded all the way, so the full row is present.
Submit an RFQ for your BOM quantity and we will source it against the order.
No official pin-compatible alternative is listed. The BERGSTIK series includes many position counts and orientations, but a direct replacement would need the same 15 positions, 2.54mm pitch, single row, right-angle, unshrouded configuration. The breakaway design allows snapping to length from longer strips, but the exact order code should be matched for the BOM.
