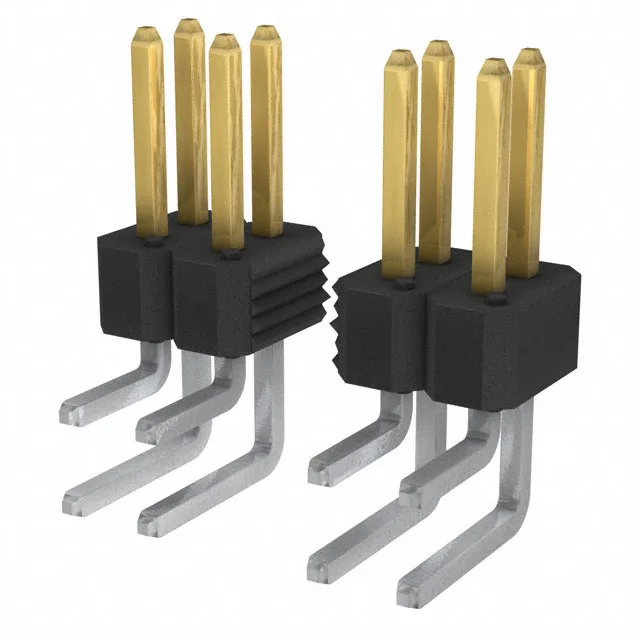

Amphenol ICC (FCI) BERGSTIK® series, 20-position, 0.100" (2.54 mm) pitch, through hole, right angle, unshrouded breakaway header, male pin, gold GXT™ mating finish, 3 A per contact, UL94 V-0.
| Parameter | Value |
|---|---|
| Series | BERGSTIK® |
| Type | Male Pin |
| Mounting | Through Hole, Right Angle |
| Connector type | Header, Breakaway |
| Fastening type | Push-Pull |
| Current rating | 3A per Contact |
| Operating temperature | -65°C~130°C |
| Contact material | Phosphor Bronze |
| Insulation color | Black |
| Insulation height | 0.190\" (4.83mm) |
| Insulation material | Thermoplastic |
| Material flammability rating | UL94 V-0 |
| Parameter | Value |
|---|---|
| Style | Board to Board |
| Package | Bag |
| Shrouding | Unshrouded |
| Termination | Solder |
| Contact shape | Square |
| Rows | 2 |
| Pitch | 0.100\" (2.54mm) |
| Positions | 20 |
| Row spacing - mating | 0.100\" (2.54mm) |
| Contact finish - post | Tin |
| Contact length - post | 0.101\" (2.57mm) |
| Contact finish - mating | Gold, GXT™ |
| Contact length - mating | 0.225\" (5.72mm) |
| Contact finish thickness - post | 78.7µin (2.00µm) |
| Contact finish thickness - mating | 30.0µin (0.76µm) |
The 77317-101-20LF: The tin-plated post (78.7 µinch / 2.00 µm) solders reliably into plated through holes.
Termination is solder through hole: the 0.101" (2.57 mm) post length fits standard 1.6 mm PCBs. The right-angle body keeps the connector low-profile at the board edge, saving z-height in stacked assemblies.
Yes, the part number suffix 'LF' indicates lead-free / RoHS-compliant finish.
