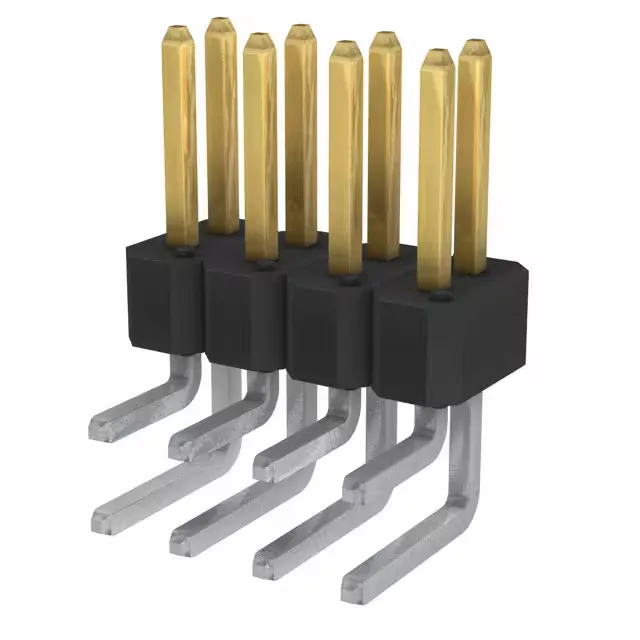

Amphenol ICC (FCI) BERGSTIK header, order code 77317-103-08LF, 8 positions, dual row, 0.100" (2.54mm) pitch, 3A per contact, gold GXT mating contacts, through-hole right-angle, solder termination.
| Parameter | Value |
|---|---|
| Series | BERGSTIK® |
| Gender | Male Pin |
| Mounting type | Through Hole, Right Angle |
| Connector type | Header, Breakaway |
| Fastening type | Push-Pull |
| Current rating | 3A per Contact |
| Operating temperature | -65°C~130°C |
| Contact material | Phosphor Bronze |
| Insulation color | Black |
| Insulation height | 0.190\" (4.83mm) |
| Insulation material | Thermoplastic |
| Material flammability rating | UL94 V-0 |
| Style | Board to Board |
| Package | Bulk |
| Shrouding | Unshrouded |
| Termination | Solder |
| Contact shape | Square |
| Rows | 2 |
| Pitch | 0.100\" (2.54mm) |
| Positions | 8 |
| Row spacing - mating | 0.100\" (2.54mm) |
| Contact finish - post | Tin |
| Contact length - post | 0.100\" (2.54mm) |
| Contact finish - mating | Gold, GXT™ |
| Contact length - mating | 0.230\" (5.84mm) |
| Contact finish thickness - post | 78.7µin (2.00µm) |
| Contact finish thickness - mating | 30.0µin (0.76µm) |
The 77317-103-08LF is the 8-circuit member of Amphenol ICC (FCI)'s BERGSTIK breakaway header line, a dual-row unshrouded board-to-board interconnect. It carries gold GXT mating contacts rated 3A per contact and mounts through-hole right-angle with solder termination.
RoHS and REACH compliance documentation is available from the manufacturer upon request.
