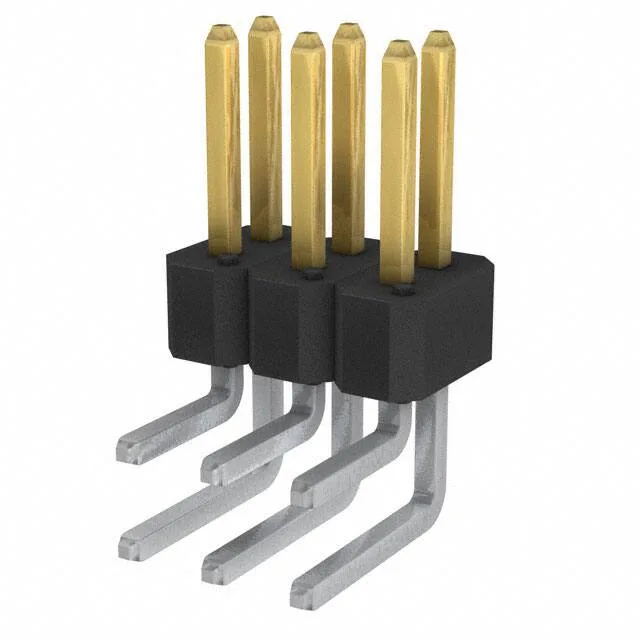

77317-104-06LF — Amphenol product photo
Amphenol

77317-104-06LF BERGSTIK® Header, 6 Pos, 0.100" Pitch

MPN77317-104-06LF
Active

Amphenol ICC (FCI) BERGSTIK®, 77317-104-06LF, unshrouded breakaway header, 6 circuits, dual-row, 0.100" (2.54 mm) pitch, right-angle through-hole, gold GXT™ mating finish, 3 A per contact, UL94 V-0.

$0.5700Ref. price · indicative, final on quote
77317-104-06LF datasheet
StockContact for availability
Lead timeIn Stock wk
MOQ1 pcs
  • New & original stockTraceable channels only — no mixed lots, no re-taped reels.
  • Factory packaging where availableSealed reels, trays and bags; cut quantities always stated on the quote.
  • Photo-verified countsEvery line counted and photographed before the box closes.
  • PayPal buyer protectionPay by T/T, PayPal or Payoneer — card payments covered end to end.
How we verify every order →

Specifications

77317-104-06LF Technical Specifications
ParameterValue
SeriesBERGSTIK®
GenderMale Pin
Mounting typeThrough Hole, Right Angle
Connector typeHeader, Breakaway
Fastening typePush-Pull
Current rating3A per Contact
Operating temperature-65°C~130°C
Contact materialPhosphor Bronze
Insulation colorBlack
Insulation height0.190\" (4.83mm)
Insulation materialThermoplastic
Material flammability ratingUL94 V-0
StyleBoard to Board
PackageBulk
ShroudingUnshrouded
TerminationSolder
Contact shapeSquare
Rows2
Pitch0.100\" (2.54mm)
Positions6
Row spacing - mating0.100\" (2.54mm)
Contact finish - postTin
Contact length - post0.120\" (3.05mm)
Contact finish - matingGold, GXT™
Contact length - mating0.230\" (5.84mm)
Contact finish thickness - post78.7µin (2.00µm)
Contact finish thickness - mating30.0µin (0.76µm)

Product details

6-Pin Right-Angle Breakaway — 0.100" Pitch

Right-Angle Routing and Board Fit

Available in bulk packaging.

The 77317-104-06LF is a 6-position variant. Siblings in the same 77317 base number include 12-position (77317-104-12LF) and 72-position (77317-104-72LF) versions, all sharing the same 0.100" pitch, dual-row layout, right-angle orientation, and gold GXT™ plating. The 8-position 77317-112-08LF is another close alternative with identical electrical ratings. Choosing a higher position count from the same base number keeps the board footprint consistent across the BOM — one family, fewer SKUs, no single-vendor lock.

Frequently asked questions

How can I order 77317-104-06LF or check stock?

Sourced to order against your BOM quantity. Availability and current pricing confirmed at quote time — submit an RFQ for this part number.
