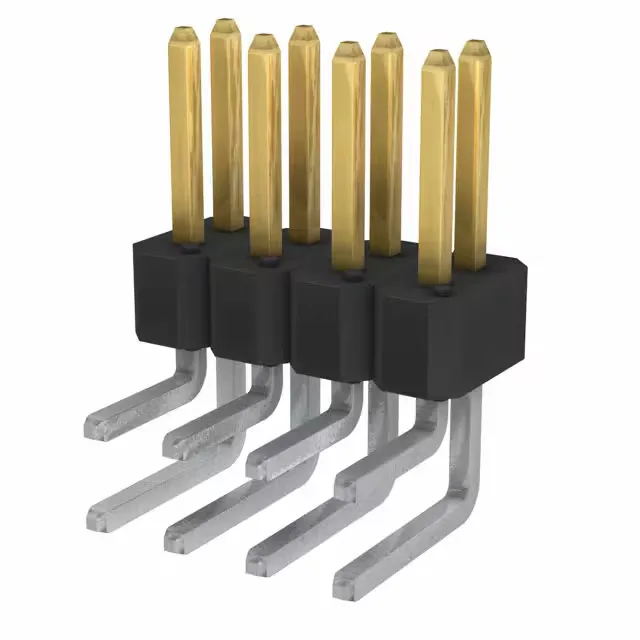

Right-Angle Breakaway Header – 8 Positions, 0.100" Pitch
The 77317-104-08LF: All 8 positions are loaded, so the BOM count is exact — no unpopulated pins to manage. The breakaway construction means the header can be snapped to shorter lengths if needed, though this part ships as a fixed 8-position unit.
3 A Per Contact – Gold GXT™ Mating Surface
The post finish is tin, which solders reliably to the PCB. The mating contact length is 0.230" (5.84 mm), providing adequate wipe for the receptacle contact beams.
Through-Hole Right-Angle – Board Mounting and Z-Height
In high-vibration environments, a secondary retention method (like a wire-to-board housing with a latch) may be needed, but for bench or low-shock applications this is sufficient.
