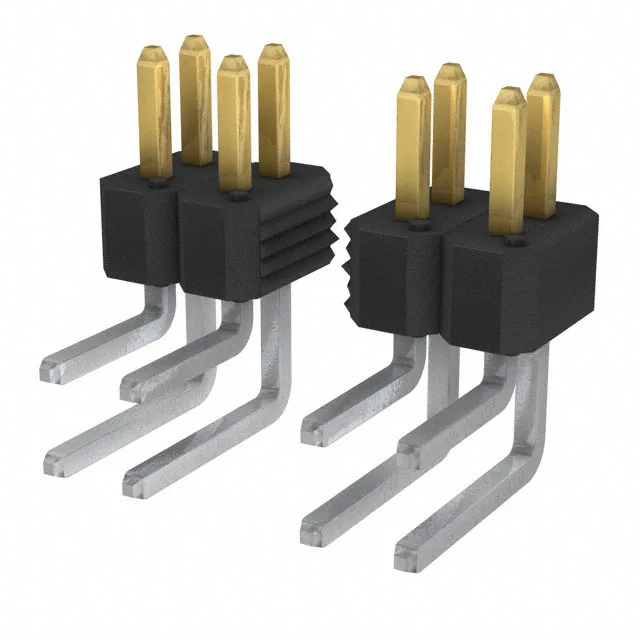

Amphenol BERGSTIK® Series, Board to Board, Header Breakaway, 10 Positions, 2 Rows, 0.100" (2.54mm) Pitch, Through Hole, Right Angle, Solder Termination, Gold GXT™ Mating, 3A per Contact.
| Parameter | Value |
|---|---|
| Series | BERGSTIK® |
| Type | Male Pin |
| Mounting | Through Hole, Right Angle |
| Connector type | Header, Breakaway |
| Fastening type | Push-Pull |
| Current rating | 3A per Contact |
| Operating temperature | -65°C~130°C |
| Contact material | Phosphor Bronze |
| Insulation color | Black |
| Insulation height | 0.190\" (4.83mm) |
| Insulation material | Thermoplastic |
| Material flammability rating | UL94 V-0 |
| Parameter | Value |
|---|---|
| Style | Board to Board |
| Package | Bag |
| Shrouding | Unshrouded |
| Termination | Solder |
| Contact shape | Square |
| Rows | 2 |
| Pitch | 0.100\" (2.54mm) |
| Positions | 10 |
| Row spacing - mating | 0.100\" (2.54mm) |
| Contact finish - post | Tin |
| Contact finish - mating | Gold, GXT™ |
| Contact finish thickness - post | 78.7µin (2.00µm) |
| Contact finish thickness - mating | 30.0µin (0.76µm) |
The 77317-110-10LF: The unshrouded breakaway design lets you snap individual sections from a longer strip, though this part ships as a fixed 10-position loaded-all header.
Pricing and lead time are confirmed at quote time; the bag packaging (standard for breakaway headers) suits both prototype and low-volume assembly.
Submit an RFQ for the 77317-110-10LF — we source it against your target quantity and confirm current pricing and lead time at quote. No stock-holding claim; availability is verified per inquiry.
Within the BERGSTIK series, other 10-position, 0.100" pitch, right-angle headers with the same gold GXT™ plating are direct fits — confirm the row spacing (0.100") and insulation height (0.190") match your board stack.
