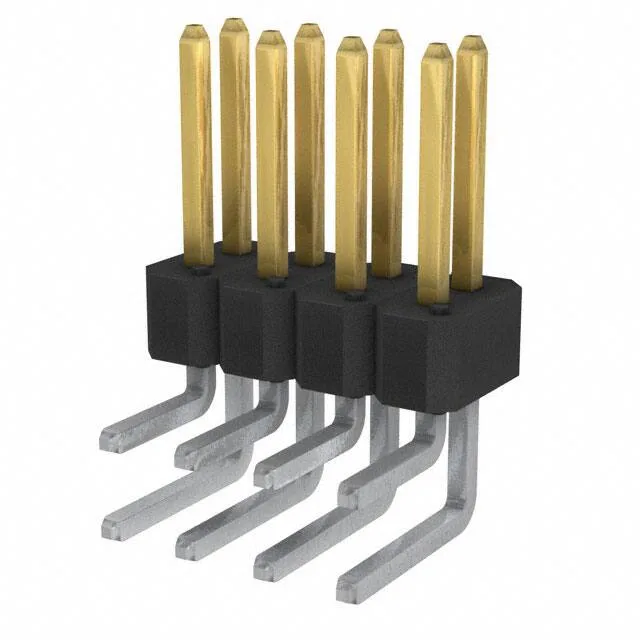

Amphenol ICC (FCI) BERGSTIK® unshrouded header, 8 positions, 2 rows, 0.100" (2.54 mm) pitch, right-angle through-hole, male pin, gold GXT™ mating finish, 3 A per contact, UL94 V-0.
| Parameter | Value |
|---|---|
| Series | BERGSTIK® |
| Type | Male Pin |
| Mounting | Through Hole, Right Angle |
| Connector type | Header, Breakaway |
| Fastening type | Push-Pull |
| Current rating | 3A per Contact |
| Operating temperature | -65°C~130°C |
| Contact material | Phosphor Bronze |
| Insulation color | Black |
| Insulation height | 0.190\" (4.83mm) |
| Insulation material | Thermoplastic |
| Material flammability rating | UL94 V-0 |
| Parameter | Value |
|---|---|
| Style | Board to Board |
| Package | Bulk |
| Shrouding | Unshrouded |
| Termination | Solder |
| Contact shape | Square |
| Rows | 2 |
| Pitch | 0.100\" (2.54mm) |
| Positions | 8 |
| Row spacing - mating | 0.100\" (2.54mm) |
| Contact finish - post | Tin |
| Contact length - post | 0.120\" (3.05mm) |
| Contact finish - mating | Gold, GXT™ |
| Contact length - mating | 0.268\" (6.80mm) |
| Contact finish thickness - post | 78.7µin (2.00µm) |
| Contact finish thickness - mating | 30.0µin (0.76µm) |
Right-angle through-hole mounting — the pins sit parallel to the board surface, so the mated cable or board runs perpendicular. Unshrouded breakaway design — you can snap the 8-position strip to a shorter length if the BOM calls for fewer circuits, though the 77317-112-08LF ships fully loaded with all 8 positions populated.
No stock-holding claim; each order is quoted individually.
3 A per contact, with the gold GXT™ mating finish rated for repeated mating cycles. The 30.0 µinch gold thickness supports field-service reconnect duty without contact fretting.
The 77317-104-06LF is the nearest sibling — same pitch, plating, right-angle orientation, and housing material, but with 6 positions instead of 8. No official second-source exists; both are active BERGSTIK® variants.
