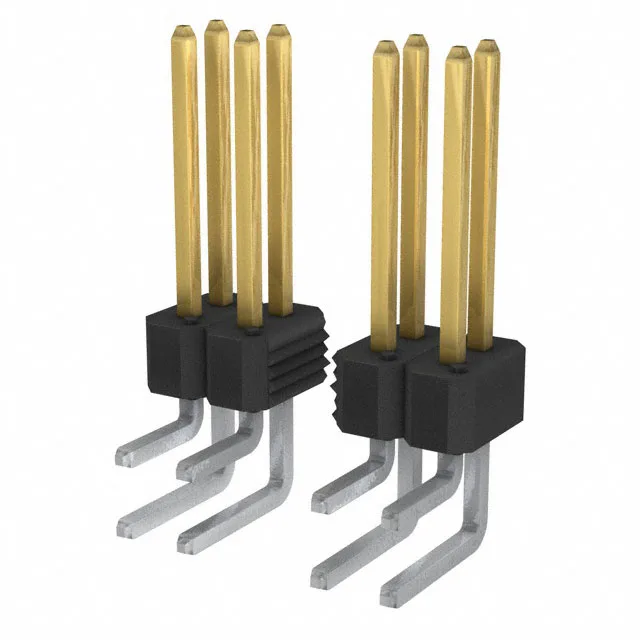

Amphenol BERGSTIK header, order code 77317-114-40LF, 40 positions, dual row, 0.100" (2.54 mm) pitch, 3 A per contact, gold GXT mating contacts, through-hole right-angle, solder termination.
| Parameter | Value |
|---|---|
| Series | BERGSTIK® |
| Type | Male Pin |
| Mounting | Through Hole, Right Angle |
| Connector type | Header, Breakaway |
| Fastening type | Push-Pull |
| Current rating | 3A per Contact |
| Operating temperature | -65°C~130°C |
| Contact material | Phosphor Bronze |
| Insulation color | Black |
| Insulation height | 0.190\" (4.83mm) |
| Insulation material | Thermoplastic |
| Material flammability rating | UL94 V-0 |
| Parameter | Value |
|---|---|
| Style | Board to Board |
| Package | Bag |
| Shrouding | Unshrouded |
| Termination | Solder |
| Contact shape | Square |
| Rows | 2 |
| Pitch | 0.100\" (2.54mm) |
| Positions | 40 |
| Row spacing - mating | 0.100\" (2.54mm) |
| Contact finish - post | Tin |
| Contact length - post | 0.106\" (2.69mm) |
| Contact finish - mating | Gold, GXT™ |
| Contact length - mating | 0.394\" (10.00mm) |
| Contact finish thickness - post | 78.7µin (2.00µm) |
| Contact finish thickness - mating | 30.0µin (0.76µm) |
The 77317-114-40LF is the 40-circuit member of Amphenol's BERGSTIK unshrouded breakaway header line, a board-to-board style with push-pull fastening. Rated 3 A per contact with gold GXT mating contacts and a 0.100" (2.54 mm) pitch, it mounts through-hole right-angle with solder termination.
No single pin-compatible alternative is listed; match the circuit count to the BOM requirement.
