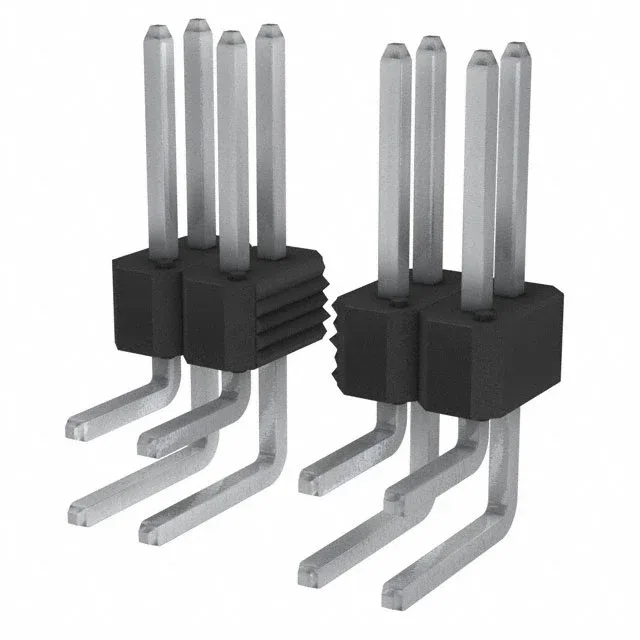

Amphenol ICC (FCI) BERGSTIK® series, 40-position dual-row unshrouded header, 0.100" (2.54 mm) pitch, through-hole right-angle termination, tin-plated square pins, 3 A per contact, UL94 V-0 black thermoplastic housing.
| Parameter | Value |
|---|---|
| Series | BERGSTIK® |
| Type | Male Pin |
| Mounting | Through Hole, Right Angle |
| Connector type | Header, Breakaway |
| Fastening type | Push-Pull |
| Current rating | 3A per Contact |
| Operating temperature | -65°C~130°C |
| Contact material | Phosphor Bronze |
| Insulation color | Black |
| Insulation height | 0.190\" (4.83mm) |
| Insulation material | Thermoplastic |
| Material flammability rating | UL94 V-0 |
| Parameter | Value |
|---|---|
| Style | Board to Board |
| Package | Bag |
| Shrouding | Unshrouded |
| Termination | Solder |
| Contact shape | Square |
| Rows | 2 |
| Pitch | 0.100\" (2.54mm) |
| Positions | 40 |
| Row spacing - mating | 0.100\" (2.54mm) |
| Contact finish - post | Tin |
| Contact length - post | 0.120\" (3.05mm) |
| Contact finish - mating | Tin |
| Contact length - mating | 0.268\" (6.80mm) |
| Contact finish thickness - post | 78.7µin (2.00µm) |
| Contact finish thickness - mating | 78.7µin (2.00µm) |
The 77317-412-40LF: All 40 positions are loaded, so the footprint matches a standard 2x20 grid. These dimensions define the keep-out zone and the required hole depth on the PCB.
The header is unshrouded, so there is no polarization key or pin protection shroud.
It has 40 positions arranged in two rows, all loaded. The pitch is 0.100" (2.54 mm) between pins and between rows.
